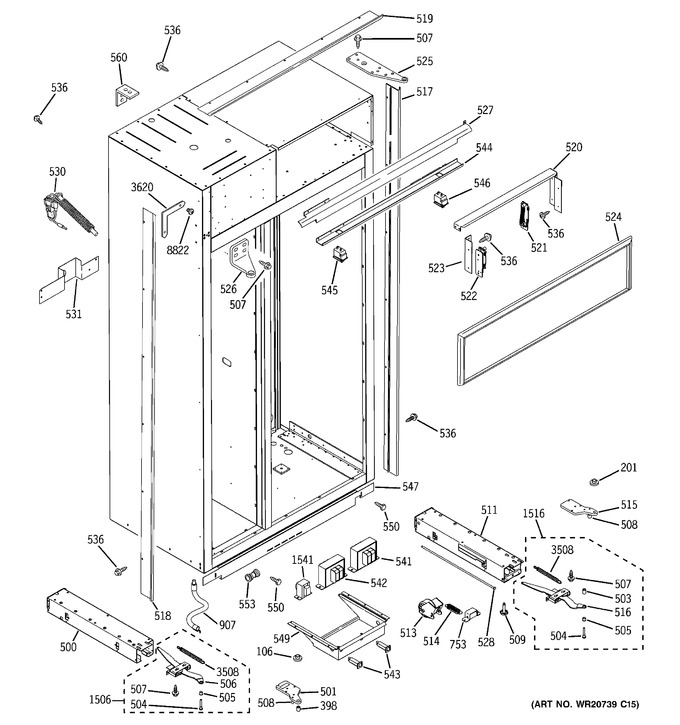

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 106 | WR01X10297 | Fz Bottom Hinge Bushing |
|
- | |||||
| 201 | WG03A00011 | Bushing Hinge Bottom (Replaces: WR02X10953) |
|
$ 73.58 | |||||
| 500 | WR13X10201 | Channel Base Assy Lh |
|
- | |||||
| 501 | WG03L01063 | Fz Hinge Sxs Lower Case (Replaces: WR13X10241) |
|
$ 110.53 | |||||
| 503 | WR01L08607 | Spacer Ff Door Closure (Replaces: WR02X11231) |
|
$ 21.71 | |||||
| 504 | WR02X11207 | Bolt Shoulder |
|
- | |||||
| 505 | WR02X10951 | Bhng Arm Nylon Ff Dr Cl |
|
- | |||||
| 506 | WR02X13152 | Actuator Arm |
|
- | |||||
| 507 | WR01X10177 | Hinge Screw Door Btm |
|
- | |||||
| 508 | WR02X11209 | Shear Pin |
|
- | |||||
| 509 | WR02X10479 | Leveling Leg |
|
- | |||||
| 511 | WR13X10200 | Channel Base Assy Rh |
|
- | |||||
| 513 | WR2X8377 | Wheel Rear Asm |
|
- | |||||
| 514 | WG03A00253 | Spring Wheel #le022c4 (Replaces: WR02X11233) |
|
$ 15.88 | |||||
| 515 | WR13X10242 | Ff Hinge Sxs Lower Case |
|
- | |||||
| 516 | WR02X13151 | Actuator Arm |
|
- | |||||
| 517 | WG03L05391 | Case Trim Ff Side (Replaces: WR17X11180) |
|
Immediately | $ 192.66 | ||||
| 518 | WR17X11181 | Case Trim Fz Side |
|
- | |||||
| 519 | WR17X11352 | Case Trim Top |
|
- | |||||
| 520 | WR13X10243 | Hood Hinge Mount |
|
- | |||||
| 521 | WR13X10204 | Hinge Assy Grille Right |
|
- | |||||
| 522 | WR13X10730 | Grill Hinge Left |
|
- | |||||
| 523 | WR02X13338 | Grille Comp |
|
- | |||||
| 524 | WR74X10120 | Kit Grille Panel Asm 36 |
|
- | |||||
| 525 | WR13X10656 | Hinge Ff Upper |
|
- | |||||
| 526 | WR13X10246 | Fz Hinge Sxs Case Upper |
|
- | |||||
| 527 | WR74X10121 | Eyebrow Switch Cover |
|
- | |||||
| 528 | WR01X10186 | Base Shaft |
|
- | |||||
| 530 | WR49X10100 | Ps Disp Fill Tube Asm (Replaces: WR49X10093) |
|
- | |||||
| 531 | WR02X12853 | Fill Tube Cover - Disp |
|
- | |||||
| 541 | WR62X10087 | Transformer Ff 140va |
|
- | |||||
| 542 | WR62X10086 | Transformer Fz 70va |
|
- | |||||
| 543 | WG03F00293 | Fuse, 2 Amp (Replaces: WR23X10269) |
|
$ 89.11 | |||||
| 544 | WR17X12523 | Plate Switch Sxs |
|
- | |||||
| 545 | WR01L07654 | Switch Light Fz (Replaces: WR23X427) |
|
$ 30.18 | |||||
| 546 | WR23X475 | Rocker Switch 200-watt |
|
- | |||||
| 547 | WR74X10180 | Toe Kick Bk |
|
- | |||||
| 549 | WR17X12738 | Tray Transformer |
|
- | |||||
| 550 | WG03A00431 | 8-32 X 3/8 Phil Ph Ty C (Replaces: WR01X10370) |
|
$ 4.20 | |||||
| 553 | WG02F11800 | Unn 5/16-1/4 (Replaces: WR02X10444) |
|
Immediately | $ 93.58 | ||||
| 560 | WR01X10825 | Bracket Anti-tip |
|
- | |||||
| 753 | WR02X13042 | Front Wheel Asm |
|
- | |||||
| 907 | WR02X11842 | Tub, Disp Water Line Kit |
|
- | |||||
| 1506 | WR02X11208 | Link Actuator Fz |
|
- | |||||
| 1516 | WR02X11211 | Link Aucator Ff |
|
- | |||||
| 1541 | WG02F11798 | Transformer (Replaces: WR62X10070) |
|
$ 165.31 | |||||
| 3508 | WG03A01588 | Spring Closure, Blue (Replaces: WR02X12949) |
|
$ 31.76 | |||||
| 3620 | WR02X11335 | Trim Corner Key |
|
- | |||||
| 8822 | WR01X10326 | #6-32 X 3/16 Mach Scr. |
|
- | |||||
| WG03F04125 | Evaporator Sxs,monogram |
|
$ 1,108.16 | ||||||
| WG03F00154 | Compressor Repl Kit (charged) |
|
$ 1,117.00 | ||||||
| WG03A03157 | Drier Filter Asm (Replaces: WG03F00245) |
|
Immediately | $ 153.40 |
