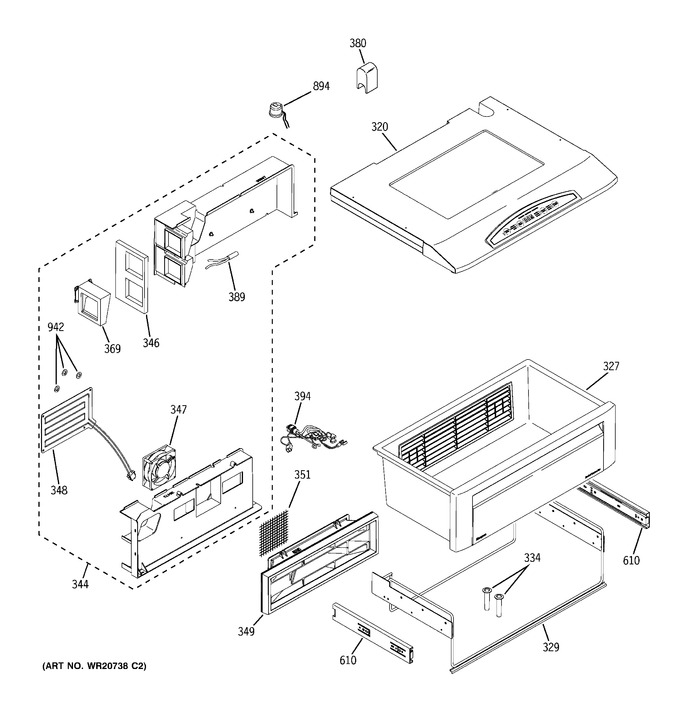

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 320 | WR32X10690 | Qc Mullion Asm 36 |
|
- | |||||
| 327 | WR32X10553 | Quick Chill Pan Assy 36" |
|
- | |||||
| 329 | WR71X10443 | Veg Wire Frame |
|
- | |||||
| 334 | WR2X8472 | Tube |
|
- | |||||
| 344 | WR31X10023 | Qc Housing Asm 36 |
|
- | |||||
| 346 | WG03F00512 | Qc Seal Damper (Replaces: WR60X10116) |
|
$ 17.01 | |||||
| 347 | WR60X10227 | Fan Chill |
|
- | |||||
| 348 | WR51X10098 | Heater Thaw 36/42/48 |
|
- | |||||
| 349 | WR31X10024 | Diffusor Case Asm |
|
- | |||||
| 351 | WR01X10298 | Wire Mesh Qc Hsg |
|
- | |||||
| 369 | WR01L04899 | Damper Assy Desupply (Replaces: WR60X10063) |
|
$ 151.81 | |||||
| 380 | WR02X13054 | Cover Water Lines |
|
- | |||||
| 389 | WR55X10030 | Sensor Temperature |
|
- | |||||
| 394 | WR23X10606 | Harness Qc Sxs |
|
- | |||||
| 610 | WR72X10191 | Slide Asm 10 |
|
- | |||||
| 894 | WR50X10092 | Thermostat Light |
|
- | |||||
| 942 | WR01X10239 | Washer Retainer Chill |
|
- |
