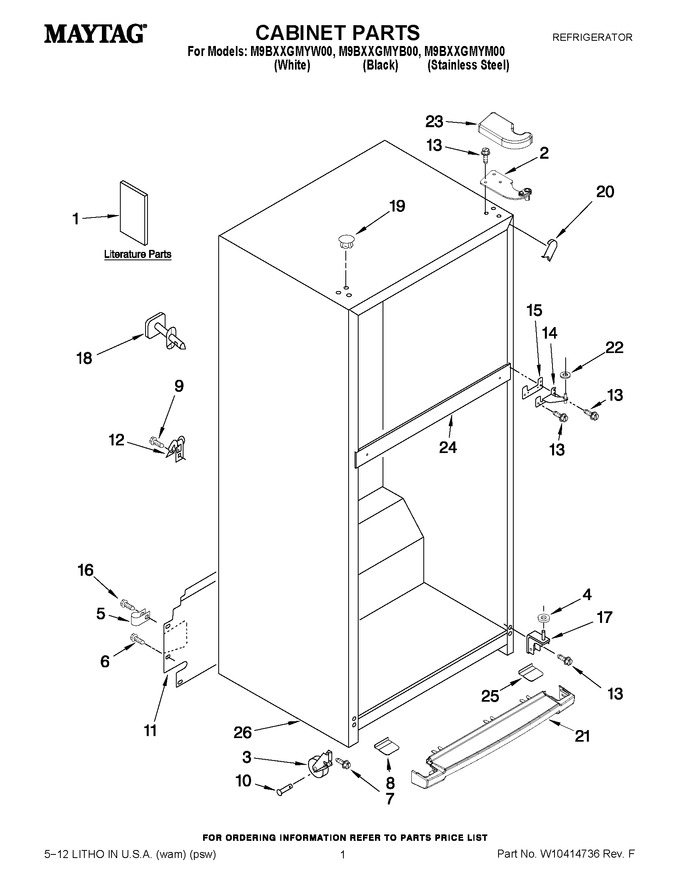

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10414768 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10360533 | Use & Care Guide |
|
- | |||||
| 1 | 2225623 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual Ref./fzr. |
|
$ 30.30 | |||||
| 1 | W10361783 | Energy Label |
|
- | |||||
| 2 | WPW10300065 | Hinge (top) (Replaces: W10300069) |
|
$ 13.28 | |||||
| 3 | WP2166108 | Roller, Front (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 4 | WP487576 | Washer, Nylon (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 11.18 | |||||
| 6 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 7 | 3400524 | Screw (Replaces: W10142287) |
|
$ 12.65 | |||||
| 8 | WPW10353932 | Endcap, Grille (midnight Grey) (Replaces: W10353932) |
|
$ 81.43 | |||||
| 8 | W10353930 | Endcap, Grille (black) |
|
$ 81.28 | |||||
| 8 | WPW10339257 | Endcap, Grille (white) (Replaces: W10339257) |
|
$ 81.35 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 10 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 18.21 | ||||
| 11 | W10636716 | Cover, Unit (Replaces: W10384413) |
|
$ 100.26 | |||||
| 12 | 549193 | Clamp, Cord |
|
$ 13.39 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 14 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 87.64 | ||||
| 15 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.65 | |||||
| 16 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.83 | ||||
| 17 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.47 | |||||
| 18 | N/P | Hinge Butt Fitting, Water (not Serviced) |
|
- | |||||
| 19 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 21.78 | |||||
| 19 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 18.10 | |||||
| 19 | WPW10520307 | Hole Plug (6) (apollo Grey) (Replaces: 2254506) |
|
Immediately | $ 7.19 | ||||
| 20 | WPW10283959 | Corner Filler (2) (white) (Replaces: W10283959) |
|
$ 7.82 | |||||
| 20 | W10851579 | Corner Filler (2) (apollo Grey) (Replaces: W10283961) |
|
Immediately | $ 7.19 | ||||
| 20 | W11252732 | Corner Filler (2) (black) (Replaces: W10283960) |
|
$ 12.45 | |||||
| 21 | W10353936 | Grille (includes (white) (Replaces: W10326386) |
|
$ 135.60 | |||||
| 21 | W10353936 | Grille (includes (black) |
|
$ 135.60 | |||||
| 21 | W10353938 | Grille (includes (midnight Grey) |
|
$ 79.10 | |||||
| 22 | WP489467 | Washer, Plain (Replaces: 489341) |
|
Immediately | $ 10.88 | ||||
| 23 | W10353948A | Cover, Hinge (black, Ls) (Replaces: W10353948) |
|
$ 14.41 | |||||
| 23 | W10331654 | Cover, Hinge (white, Ls) |
|
- | |||||
| 23 | W10353950A | Cover, Hinge (midnight Grey, Ls) (Replaces: W10353950) |
|
$ 23.22 | |||||
| 23 | W10331560A | Cover, Hinge (white, Rs) (Replaces: W10331560) |
|
$ 12.80 | |||||
| 23 | W10353945A | Cover, Hinge (black, Rs) (Replaces: W10353945) |
|
$ 14.41 | |||||
| 23 | W10353947A | Cover, Hinge (midnight Grey, Rs) (Replaces: W10353947) |
|
$ 13.60 | |||||
| 24 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 25 | W10381059 | Endcap, Grille (white) |
|
$ 83.40 | |||||
| 25 | W10381064 | Endcap, Grille (midnight Grey) |
|
$ 70.38 | |||||
| 25 | W10381060 | Endcap, Grille (black) |
|
$ 36.12 | |||||
| 26 | N/P | Cabinet (not A Serviceable Part) |
|
- |
