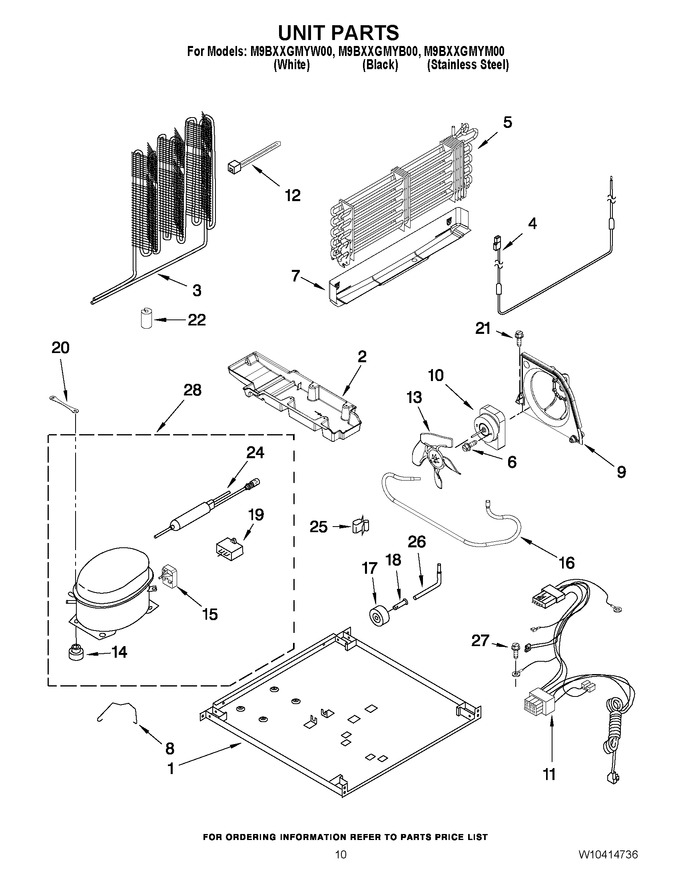

06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Plate, Unit Mounting |
|
$ 156.48 | |||||
| 2 | W10890667 | Tray, Evaporator (Replaces: W10466213) |
|
$ 144.71 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 264.95 | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 245.63 | ||||
| 5 | WPW10314205 | Evaporator Assy. (Replaces: W10314205) |
|
$ 344.18 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Heat Shield (Replaces: W10314195) |
|
$ 96.51 | |||||
| 8 | W11661170 | Bale, Strap (Replaces: W10174384) |
|
Immediately | $ 11.30 | ||||
| 9 | WP2315541 | Air Baffle (Replaces: 2315541) |
|
Immediately | $ 83.80 | ||||
| 10 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 11 | W10405935 | Wire Assembly, Unit |
|
$ 154.68 | |||||
| 12 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.90 | |||||
| 13 | WPW10139483 | Fan Blade (Replaces: W10139483) |
|
$ 95.07 | |||||
| 14 | WPW10169124 | Grommet (production) (Replaces: 10835903) |
|
Immediately | $ 7.19 | ||||
| 14 | 876811 | Grommet (service) (Replaces: 1100826) |
|
$ 7.42 | |||||
| 15 | WPW10194431 | Start-device, Combination (start Relay And Overload) (service) (Replaces: W10194431) |
|
Immediately | $ 86.85 | ||||
| 16 | W10319864 | Tube, Suction |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 18.21 | ||||
| 19 | WPW10662129 | Capacitor (production) (Replaces: 2169373) |
|
Immediately | $ 58.86 | ||||
| 19 | WPW10662129 | Capacitor (service) (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 19.82 | ||||
| 21 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 22 | W10852725 | Grommet, Cond (Replaces: 2319835) |
|
$ 7.70 | |||||
| 24 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 24 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 25 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 10.59 | |||||
| 26 | W10274306 | Tube, Process |
|
$ 13.71 | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 28 | W10233960 | Compressor (includes Items 14, 15, 19 & 24) (Replaces: W10164016) |
|
Immediately | $ 513.66 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| NI | N/P | Refrigerant Charge (r134a) |
|
- | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 91.35 | ||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
