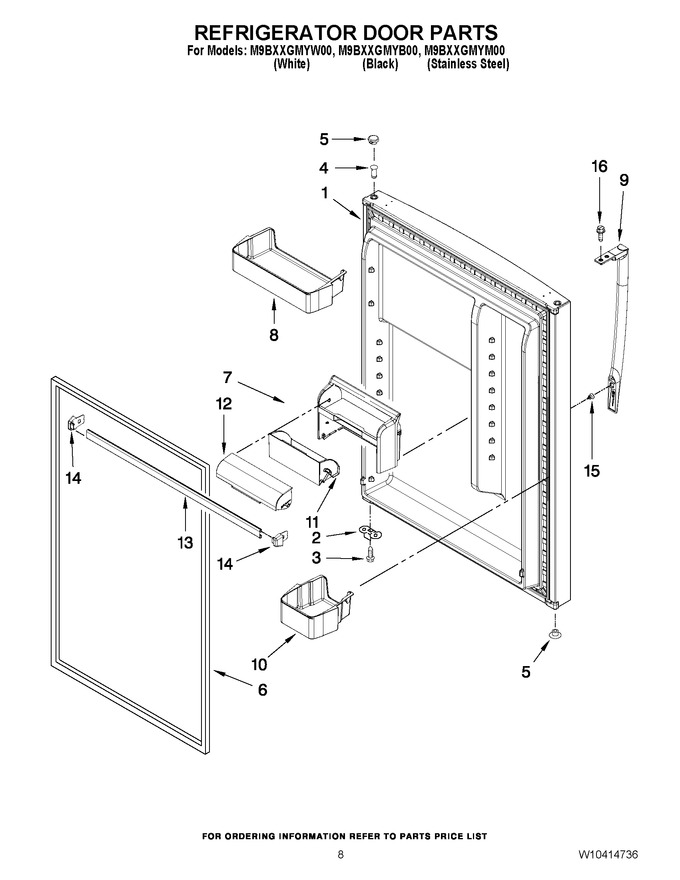

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10329581		Refrigerator Door (includes Illus. 4 & 6) (white)   (Replaces: W10329581)				$ 731.75
1	W10353883		Refrigerator Door (includes Illus. 4 & 6) (black)		Appelez-nous	-
1	W10353894		Refrigerator Door (includes Illus. 4 & 6) (stainless)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
3	WP681249		Screw, 8 X 1/2   (Replaces: 489276)			Immediately	$ 7.86
4	W11189115		Thimble   (Replaces: W10334042)				$ 12.10
5	WP2212651		Hole Plug, Hinge (black)   (Replaces: 2212651)				$ 23.06
5	WP2254517		Hole Plug, Hinge (apollo Grey)   (Replaces: 2254517)			Immediately	$ 23.18
5	WP2212648		Hole Plug, Hinge (white)   (Replaces: 2212648)			Immediately	$ 7.80
6	2177305		Door Gasket, Magnetic (black)   (Replaces: 2202881)				$ 274.07
6	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202874)			Immediately	$ 164.66
6	W11624977		Door Gasket, Magnetic (apollo Grey)   (Replaces: W10279664)				$ 352.88
7	W10308809		Compartment				$ 35.60
8	WPW10308868		Bin, Long   (Replaces: W10331763)			Immediately	$ 84.85
9	W10838896		Handle (white)   (Replaces: W10366329)				$ 65.88
9	WPW10370622		Handle (black)   (Replaces: W10370622)			Immediately	$ 50.70
9	W10370624		Handle (titanium Sparkle)				$ 38.22
10	WPW10308867		Bin, Short   (Replaces: W10331762)				$ 70.32
11	W10356444		Bin, Tilt Out		Appelez-nous	-
12	WPW10308843		Utility Flip Lid   (Replaces: W10308843)				$ 75.22
13	W10308872		Trim, Door Shelf		Appelez-nous	-
14	W10308871		Endcap, Trim Rs				$ 10.44
14	W10338485		Endcap, Trim Ls				$ 10.41
15	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
