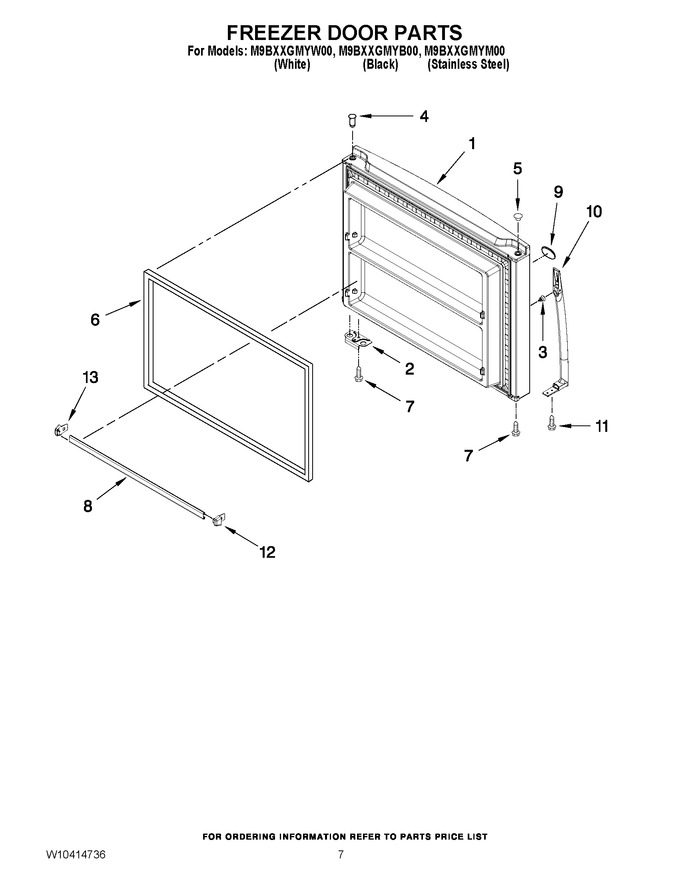

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10353321		Freezer Door (includes Illus. 4 & 6) (stainless)		Appelez-nous	-
1	W10329576		Freezer Door (includes Illus. 4 & 6) (white)		Appelez-nous	-
1	LW10353302		Freezer Door (includes Illus. 4 & 6) (black)   (Replaces: W10353302)				$ 414.52
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
3	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
4	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
5	WP2212648		Hole Plug, Hinge (white)   (Replaces: 2212648)			Immediately	$ 8.19
5	WP2212651		Hole Plug, Hinge (black)   (Replaces: 2212651)				$ 24.21
5	WP2254517		Hole Plug, Hinge (apollo Grey)   (Replaces: 2254517)			Immediately	$ 24.34
6	W11624958		Door Gasket, Magnetic (apollo Grey)   (Replaces: W10279559)				$ 320.92
6	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
6	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 225.08
7	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
8	W10469910		Trim, Door   (Replaces: W10308873)				$ 164.72
9	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
10	W10838896		Handle (white)   (Replaces: W10366329)				$ 69.17
10	W10370624		Handle (titanium Sparkle)				$ 38.22
10	WPW10370622		Handle (black)   (Replaces: W10370622)			Immediately	$ 53.24
11	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
12	W10308871		Endcap, Trim Rs				$ 10.44
13	W10338485		Endcap, Trim Ls				$ 10.41
