01 - Cabinet Parts

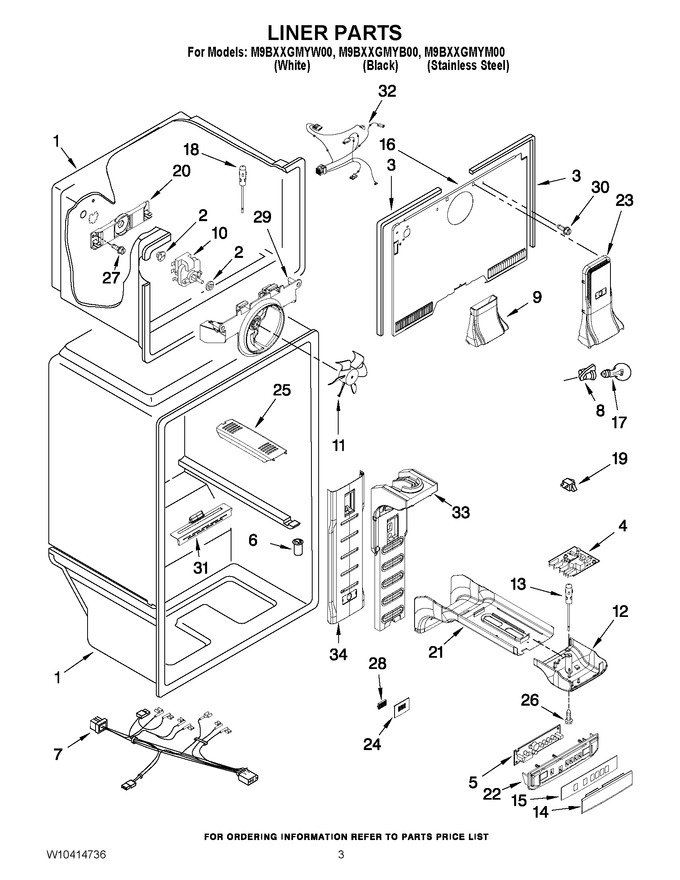

02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporatorv Cover (Replaces: 2254359) |
|
$ 28.12 | |||||
| 4 | WPW10392193 | Elec. Control (Replaces: W10392193) |
|
Immediately | $ 53.68 | ||||
| 5 | WPW10341559 | Switch Assembly (Replaces: W10341559) |
|
$ 279.87 | |||||
| 6 | WP2210509 | Valve (Replaces: 2210509) |
|
$ 99.15 | |||||
| 7 | W10557785 | Wire Assembly, Control Box (Replaces: W10292528) |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | W10396926 | Tower Conn Assy |
|
$ 39.05 | |||||
| 10 | WP2315539 | Fan Motor (Replaces: 2315539) |
|
Immediately | $ 83.25 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | W10316942 | Control Box |
|
$ 100.98 | |||||
| 13 | WPW10384183 | Thermistor, Rc (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 14 | W10339195 | Fascia, Lens |
|
$ 21.53 | |||||
| 15 | W10356943 | Overlay |
|
$ 111.17 | |||||
| 16 | W10305172 | Cover, Evaporator |
|
- | |||||
| 17 | W10887190 | Light Bulb (Replaces: W10311528) |
|
Immediately | $ 19.23 | ||||
| 18 | WPW10383615 | Thermistor, Fc (Replaces: W10383615) |
|
Immediately | $ 47.51 | ||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | 2254454 | Bracket Evap. Fan, Rear |
|
Immediately | $ 75.44 | ||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 114.36 | |||||
| 22 | W10383443 | Fascia, Control |
|
$ 79.56 | |||||
| 23 | W10305174 | Air Tower |
|
$ 43.06 | |||||
| 24 | WPW10330850 | Grille, Air Filter (Replaces: W10330850) |
|
$ 37.56 | |||||
| 25 | WPW10348614 | Light Cover, Rc (Replaces: W10348614) |
|
$ 117.96 | |||||
| 26 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 27 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 28 | W10311524 | Air Filter (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 30 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 31 | W10326336 | Cover, Rear |
|
- | |||||
| 32 | WPW10283809 | Wire Assy Evap Fan (Replaces: W10283809) |
|
$ 129.30 | |||||
| 33 | WPW10395376 | Multiflow Assembly (Replaces: W10395376) |
|
$ 88.78 | |||||
| 34 | WPW10356895 | Air Tower (Replaces: W10356895) |
|
$ 161.49 |
