View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts

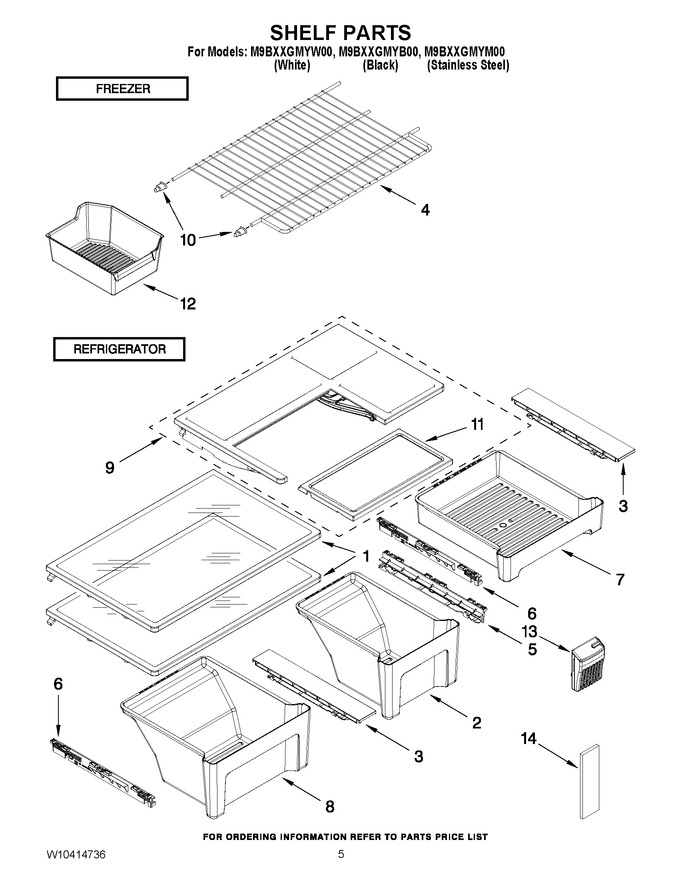

03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10486290 | Shelf, Full (Replaces: W10423887) |
|
$ 250.74 | |||||
| 2 | W10373935 | Crisper Pan W/sachet Mount |
|
$ 162.52 | |||||
| 3 | WPW10468557 | Track Rail, Center (Replaces: W10404446) |
|
Immediately | $ 30.75 | ||||
| 4 | W10477088 | Shelf, Wire Center (Replaces: W10384383) |
|
$ 171.70 | |||||
| 5 | WPW10468556 | Track Rail Rs (Replaces: W10404450) |
|
Immediately | $ 7.19 | ||||
| 6 | WPW10468555 | Track Rail Ls (Replaces: W10404449) |
|
Immediately | $ 25.10 | ||||
| 7 | WPW10310944 | Meat Pan (Replaces: W10310944) |
|
$ 141.71 | |||||
| 8 | W10373950 | Crisper Pan |
|
$ 256.00 | |||||
| 9 | WPW10476425 | Shelf 2/3 Flip Assembly (Replaces: W10352270) |
|
Immediately | $ 296.19 | ||||
| 10 | WPW10130299 | Cup, Shelf Mount (Replaces: W10130299) |
|
Immediately | $ 14.00 | ||||
| 11 | WPW10305243 | Shelf 2/3 Flip (Replaces: W10305243) |
|
$ 132.32 | |||||
| 12 | 2254352A | Pan, Ice Cube (Replaces: 2254352) |
|
$ 55.85 | |||||
| 13 | W11605789 | Holder, Sachet (Replaces: W10408748) |
|
Immediately | $ 16.82 | ||||
| 14 | W10346771 | Sachet Bag |
|
- |
