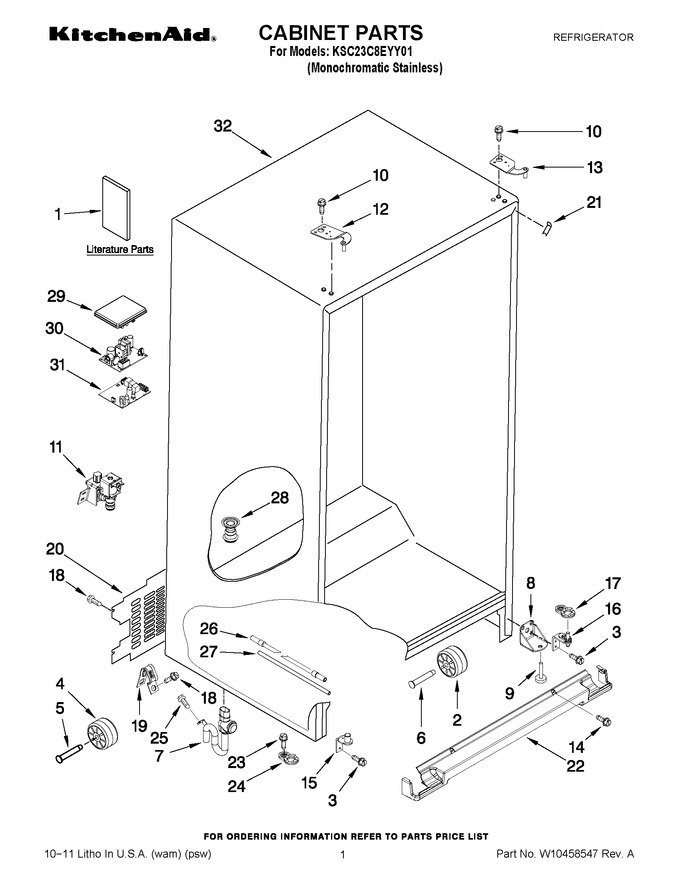

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10168321 | Use & Care Guide |
|
- | |||||
| 1 | W10345733 | Energy Label |
|
- | |||||
| 1 | W10287673 | Service & Wiring Sheet |
|
- | |||||
| 2 | WPW10475495 | Front Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 3 | WPW10297485 | Screw (Replaces: W10297485) |
|
$ 8.40 | |||||
| 4 | 12477102 | Roller (rear) |
|
Immediately | $ 7.38 | ||||
| 5 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 6 | WPW10285005 | Rivet, Roller (Replaces: W10285005) |
|
$ 16.77 | |||||
| 7 | W11519143 | Drain Tube Assy (Replaces: W10369091) |
|
$ 38.35 | |||||
| 8 | W11266052 | Bracket, Foot (Replaces: W10257186) |
|
$ 66.31 | |||||
| 9 | WPW10141622 | Foot, Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 10 | WPW10308750 | Screw (Replaces: W10308750) |
|
$ 73.29 | |||||
| 11 | WPW10238100 | Valve, Inlet (Replaces: W10238100) |
|
Immediately | $ 210.55 | ||||
| 12 | W11590581 | Hinge, Top (fc) (Replaces: W10249922) |
|
$ 24.93 | |||||
| 13 | W11409290 | Hinge, Top (rc) (Replaces: W10249925) |
|
$ 70.48 | |||||
| 14 | WPW10142283 | Screw (Replaces: W10142283) |
|
$ 10.33 | |||||
| 15 | W11293374 | Bottom Hinge (fc) (Replaces: W10249943) |
|
$ 73.32 | |||||
| 16 | W10500004 | Bottom Hinge (rc) (Replaces: W10257209) |
|
Immediately | $ 139.15 | ||||
| 17 | W10500004 | Door Closer (rc) (Replaces: W10257197) |
|
Immediately | $ 139.15 | ||||
| 18 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 19 | 549193 | Clamp, Service Cord |
|
$ 14.06 | |||||
| 20 | W10257238 | Cover, Unit (Replaces: W10333887) |
|
$ 103.04 | |||||
| 21 | WP12587703AP | Filler, Wrapper (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 22 | WPW10713153 | Grille (Replaces: W10257234) |
|
Immediately | $ 135.52 | ||||
| 23 | WP489483 | Screw (Replaces: W10142234) |
|
$ 11.41 | |||||
| 24 | W10876191 | Door Closer (fc) (Replaces: W10257200) |
|
$ 17.98 | |||||
| 25 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 26 | WPW10279882 | Tube, Filter Inlet (Replaces: W10277956) |
|
$ 114.23 | |||||
| 27 | WPW10279885 | Tube, Filter Outlet (Replaces: W10279857) |
|
$ 128.74 | |||||
| 28 | W10247979 | Drain Fitting |
|
$ 67.82 | |||||
| 29 | W11226688 | Cover (Replaces: 12957702) |
|
$ 85.16 | |||||
| 30 | WPW10226427 | Elec. Control-45w Power Supply (Replaces: W10226427) |
|
Immediately | $ 351.93 | ||||
| 31 | WPW10235503 | Elec. Control (Replaces: W10235503) |
|
Immediately | $ 382.84 | ||||
| 32 | N/P | Cabinet (not A Serviceable Part) |
|
- |
