SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

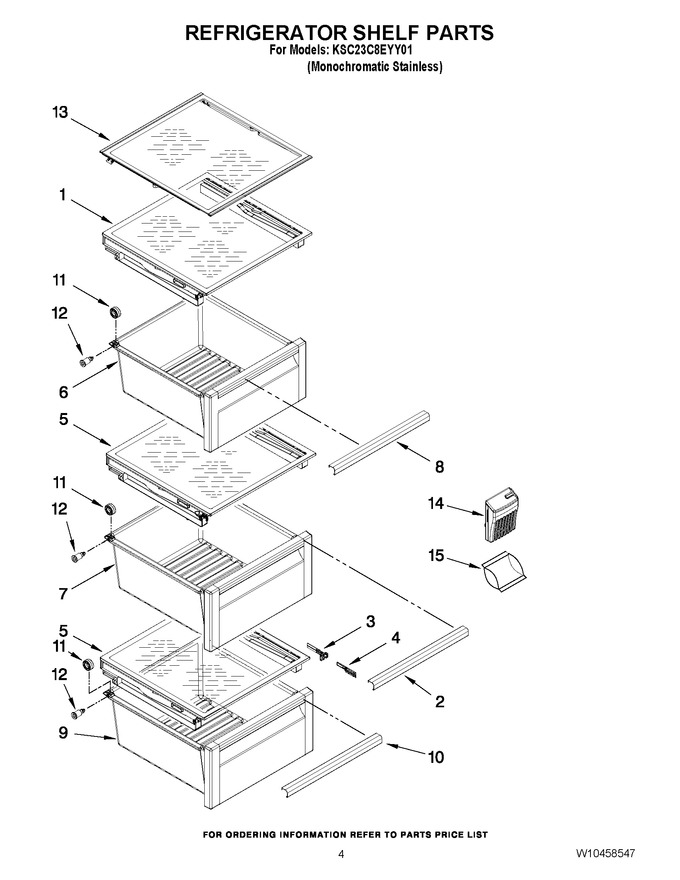

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10362169		Shelf, Snack Pan   (Replaces: W10362169)				$ 277.28
2	WPW10531023		Trim, Handle   (Replaces: W10321200)				$ 109.41
3	W10257334		Slide, Humidity				$ 61.15
4	W10316452		Housing, Humidity				$ 92.65
5	WPW10440266		Cover, Assy   (Replaces: W10440266)				$ 286.90
6	W11175841		Snack Pan (includes 8, 11, & 12)   (Replaces: W10440268)				$ 199.16
7	WPW10531081		Crisper Pan (includes 2, 3, 4, 11, & 12)   (Replaces: W10440273)			Immediately	$ 207.11
8	WPW10542020		Trim, Handle   (Replaces: W10320875)				$ 116.28
9	WPW10531082		Meat Pan (includes 10, 11, & 12)   (Replaces: W10440269)				$ 148.02
10	WPW10531022		Trim, Handle   (Replaces: W10316516)				$ 108.10
11	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
12	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
13	W11300659		Shelf Assy   (Replaces: W10315527)			Immediately	$ 255.75
14	WPW10408747		Holder, Filter   (Replaces: W10408747)				$ 32.61
15	W10346771		Filter, Produce Ice Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
