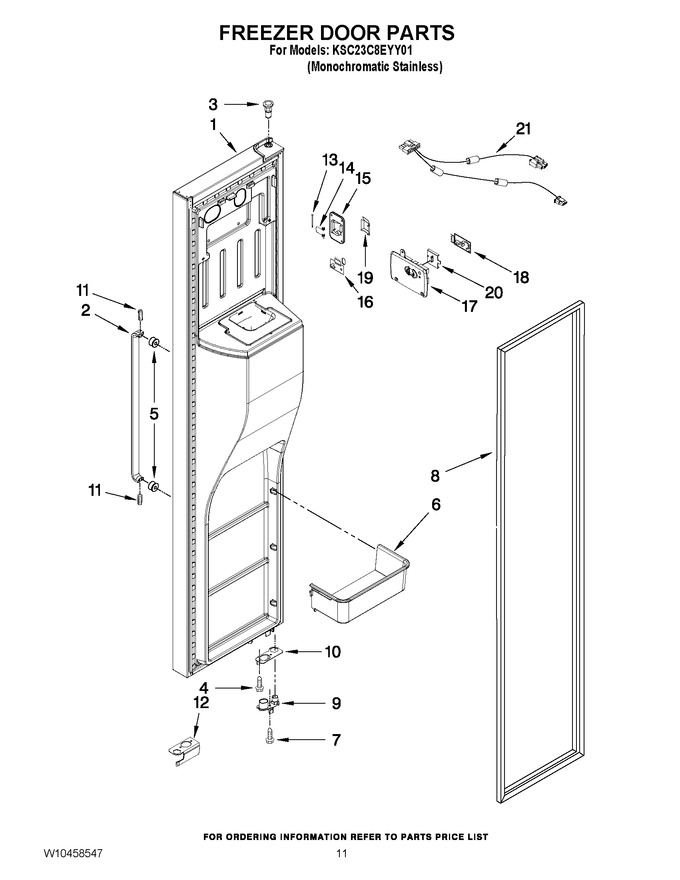

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10397056 | Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Stainless) |
|
- | |||||
| 2 | WPW10314517K | Handle (Replaces: W10314517) |
|
$ 243.37 | |||||
| 3 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 8.15 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 5 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 6 | WPW10434529 | Door Bin (Replaces: W10434529) |
|
$ 77.78 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 8 | WPW10355585 | Door Gasket, Magnetic (Replaces: W10249917) |
|
$ 337.27 | |||||
| 9 | WPW10257206 | Door Closer, Upper Cam (Replaces: W10257206) |
|
Immediately | $ 13.18 | ||||
| 10 | W11293380 | Bracket, Door Stop (chrome) (Replaces: W10247907) |
|
$ 69.21 | |||||
| 11 | WP3400203 | Set Screw (Replaces: W10287054) |
|
Immediately | $ 5.04 | ||||
| 12 | WPW10632062 | Cover, Door Stop (Replaces: W10257223) |
|
$ 7.55 | |||||
| 13 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 18.65 | |||||
| 14 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 91.43 | |||||
| 15 | W10258502 | Cover, Emitter |
|
$ 89.74 | |||||
| 16 | W10870822 | P.c. Board, Emitter (Replaces: W10180607) |
|
Immediately | $ 222.54 | ||||
| 17 | W11763407 | Cover, Emitter (Replaces: W10258510) |
|
$ 44.50 | |||||
| 18 | W11813704 | P.c. Board, Receiver (Replaces: W10296530) |
|
Immediately | $ 328.97 | ||||
| 19 | WPW10258520 | Flipper (Replaces: W10258520) |
|
$ 79.65 | |||||
| 20 | W10258540 | Slide, Ice Make Shut Off |
|
$ 11.15 | |||||
| 21 | W10242369 | Harness, Emitter & Receiver |
|
$ 132.58 |
