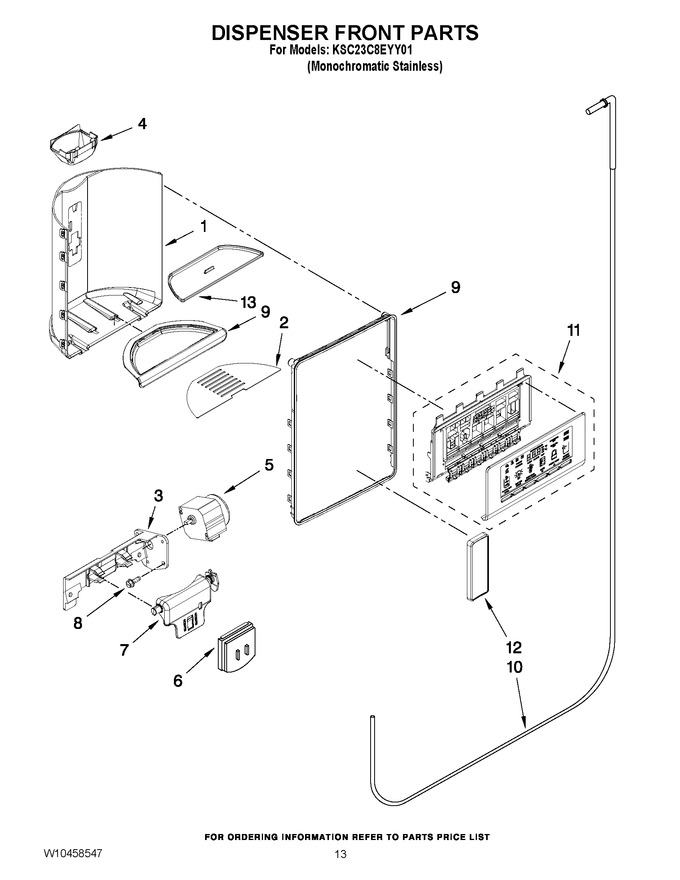

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10317270 | Grate, Drip Tray (Replaces: W10317270) |
|
$ 75.65 | |||||
| 3 | W11130210 | Bracket, Ice Door (Replaces: W10317235) |
|
$ 160.56 | |||||
| 4 | WPW10435760 | Chute, Door (Replaces: W10339578) |
|
$ 23.94 | |||||
| 5 | WPW10205978 | Motor, Ice Door (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | W11130210 | Ice Door Assembly (includes Items 3, 5, 7, & 8) (Replaces: W10355494) |
|
$ 160.56 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | WPW10317261 | Housing, Tray (Replaces: W10317261) |
|
$ 83.76 | |||||
| 10 | WPW10386778 | Water Tube (Replaces: W10277960) |
|
Immediately | $ 132.74 | ||||
| 11 | WPW10393881 | Electronic Control Assy (Replaces: W10393881) |
|
$ 495.27 | |||||
| 12 | WPW10346924 | Pad, Ice & Water (Replaces: W10346924) |
|
Immediately | $ 289.65 | ||||
| 13 | W10859920 | Drip Tray, Insert (Replaces: W10317276) |
|
$ 67.52 |
