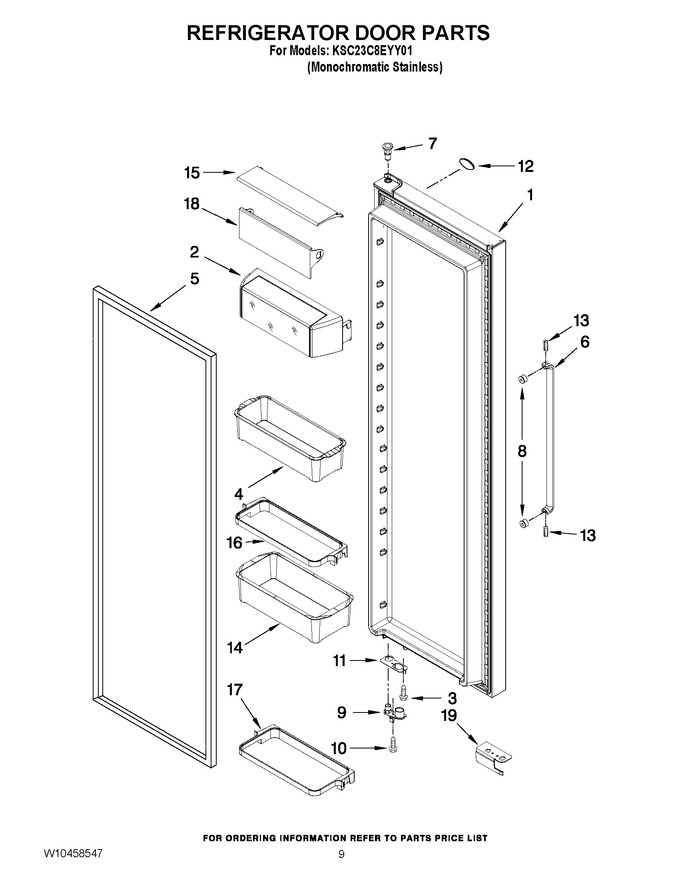

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10397030 | Refrigerator Door (includes Item 5) (mono Stainless) |
|
- | |||||
| 2 | WPW10324760 | Door Compartment Assembly (Replaces: W10316889) |
|
$ 85.60 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | WPW10316461 | Door Bin, Shallow (Replaces: W10316461) |
|
$ 73.74 | |||||
| 5 | W10355582 | Door Gasket, Magnetic (Replaces: W10249916) |
|
$ 341.26 | |||||
| 6 | WPW10314517K | Handle (Replaces: W10314517) |
|
$ 243.37 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 8.15 | |||||
| 8 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 9 | WPW10257203 | Door Closer, Upper Cam (Replaces: W10257203) |
|
$ 12.96 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (chrome) (Replaces: W10247909) |
|
$ 80.24 | |||||
| 12 | WPW10243391 | Nameplate (Replaces: W10243391) |
|
$ 58.31 | |||||
| 13 | WP3400203 | Set Screw (Replaces: W10287054) |
|
Immediately | $ 5.04 | ||||
| 14 | WPW10316457 | Door Bin, Gallon (Replaces: W10316457) |
|
Immediately | $ 98.69 | ||||
| 15 | WPW10316883 | Lid, Compartment (Replaces: W10316883) |
|
$ 67.67 | |||||
| 16 | WPW10494333 | Frame, Shallow Door Bin (Replaces: W10438988) |
|
$ 221.92 | |||||
| 17 | WPW10494334 | Frame, Gallon Door Bin (Replaces: W10438948) |
|
$ 266.97 | |||||
| 18 | WPW10316885 | Window, Door Compartment (Replaces: W10316885) |
|
$ 75.42 | |||||
| 19 | W11661847 | Cover, Door Stop (Replaces: W10257218) |
|
Immediately | $ 31.71 |
