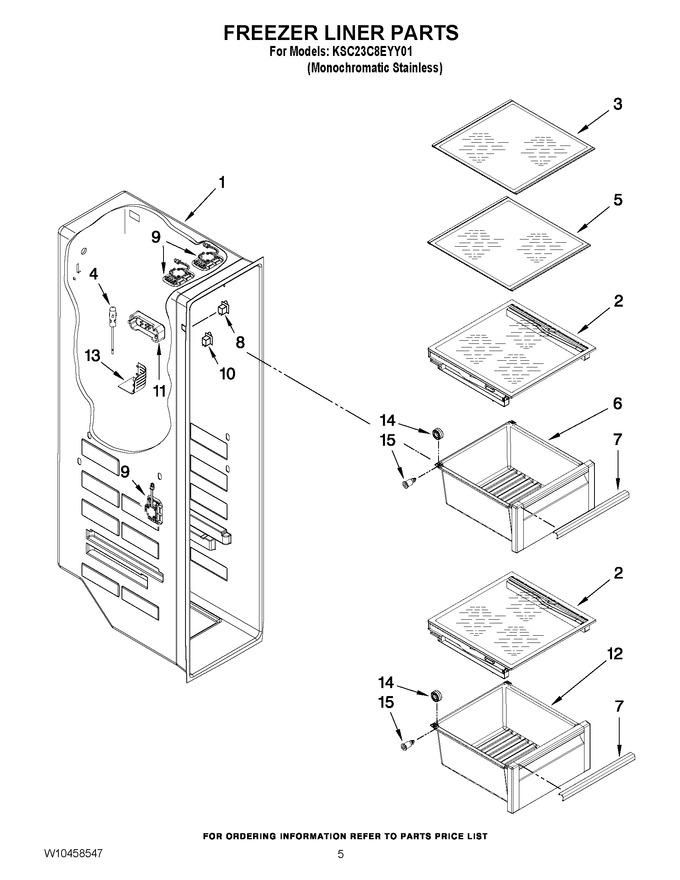

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WPW10362174 | Cover Assy (Replaces: W10362174) |
|
$ 242.25 | |||||
| 3 | W11217335 | Shelf, Glass Upper (Replaces: W10315529) |
|
$ 255.45 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 33.60 | ||||
| 5 | W11217336 | Shelf, Glass Lower (Replaces: W10315530) |
|
$ 247.94 | |||||
| 6 | W10861754 | Pan, Freezer Upper (includes 7, 14, & 15) (Replaces: W10440270) |
|
$ 122.83 | |||||
| 7 | W10542018 | Trim, Handle (Replaces: W10316519) |
|
$ 115.56 | |||||
| 8 | W11123943 | Switch, Rocker Arm Upper (Replaces: 2149954) |
|
$ 36.66 | |||||
| 9 | W11683241 | Led Light Assy (Replaces: W10279030) |
|
Immediately | $ 271.97 | ||||
| 10 | W11457217 | Switch, Rocker Arm Lower (Replaces: 1115373) |
|
$ 40.09 | |||||
| 11 | WPW10425252 | Cover, Thermistor (Replaces: W10356631) |
|
Immediately | $ 88.38 | ||||
| 12 | W11607156 | Pan, Freezer Lower (includes 7, 14, & 15) (Replaces: W10440272) |
|
$ 105.30 | |||||
| 13 | W10260382 | Lens, Light (Replaces: W10294700) |
|
$ 80.58 | |||||
| 14 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 15.74 | ||||
| 15 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 36.54 |
