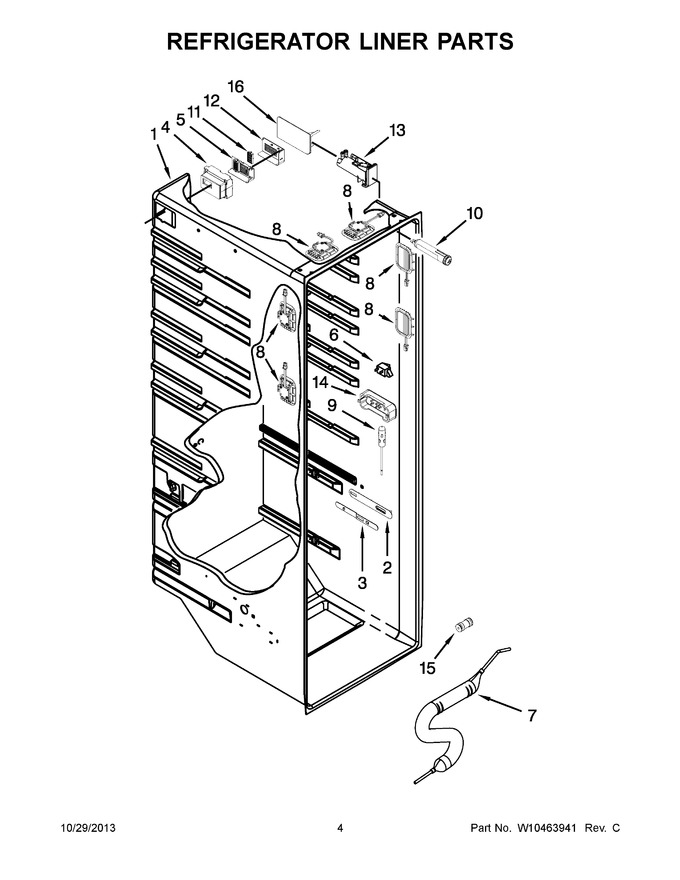

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10260988 | Escutcheon, Meat Pan Control |
|
- | |||||
| 3 | W10260989 | Slide, Meat Pan Control |
|
- | |||||
| 4 | W11164593 | Air Diffuser Assembly (Replaces: W10362947) |
|
Immediately | $ 122.07 | ||||
| 5 | WPW10457601 | Air Diffuser Cover (Replaces: W10457601) |
|
$ 149.72 | |||||
| 6 | W11384469 | Switch, Light (Replaces: C3680314) |
|
Immediately | $ 37.23 | ||||
| 7 | W11802492 | Reservoir (Replaces: W10366790) |
|
$ 84.68 | |||||
| 8 | W11683241 | Light, Led Assembly (Replaces: W10279030) |
|
Immediately | $ 259.02 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 32.00 | ||||
| 10 | EDR1RXD1B | Filter, Water (Replaces: W10295370) |
|
Immediately | $ 49.99 | ||||
| 11 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 12 | W10572852 | Air Filter Cover (Replaces: W10389900) |
|
Immediately | $ 344.59 | ||||
| 13 | WPW10238123 | Housing, Water Filter (Replaces: W10238123) |
|
$ 228.39 | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10356630) |
|
Immediately | $ 84.17 | ||||
| 15 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 33.74 | ||||
| 16 | W10300484 | Cover, Water Filter |
|
$ 123.80 |
