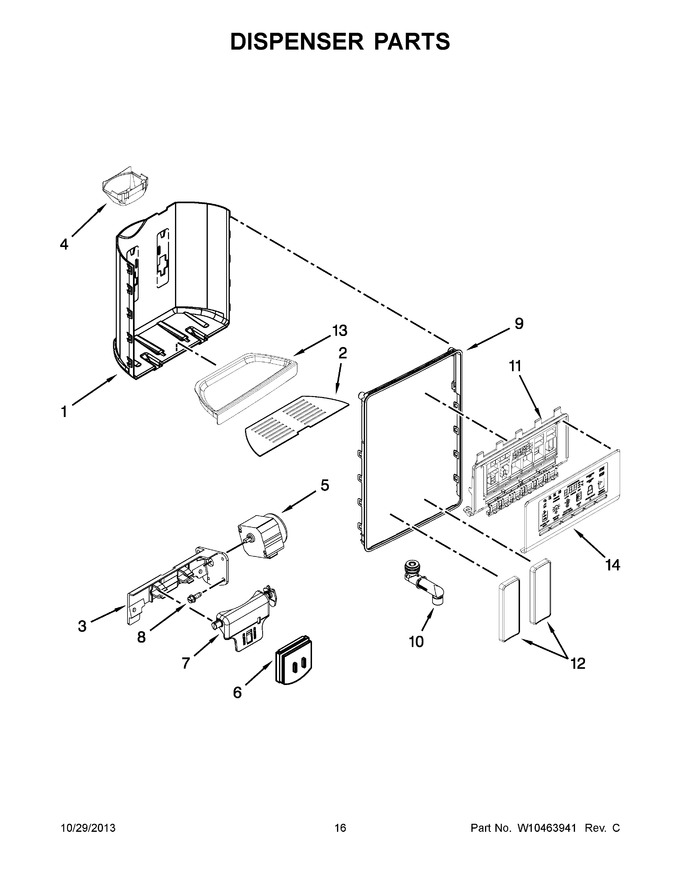

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276209		Grate, Drip Tray   (Replaces: W10276209)				$ 77.67
3	W10174827		Bracket, Ice Door				$ 72.78
4	WPW10435760		Guide-ice   (Replaces: W10339578)				$ 22.80
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 99.16
6	W10838126		Assembly, Separator   (Replaces: W10353566)				$ 156.50
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 39.86
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.49
9	W10448931		Trim Ring (chromium Frost)   (Replaces: W10254252)		Appelez-nous	-
10	WP2305235		Assembly, Spigot   (Replaces: 2305235)				$ 140.07
11	WPW10388237		Electronic Control Assembly   (Replaces: W10388235)				$ 336.34
12	WPW10370594		Pad Assembly- Water & Ice (grey)   (Replaces: W10370594)				$ 295.82
13	W10276225		Drip Tray (satina)				$ 70.53
14	W10254266		Fascia (silver)				$ 121.64

    View Diagram in Separate Window       Print Part List
