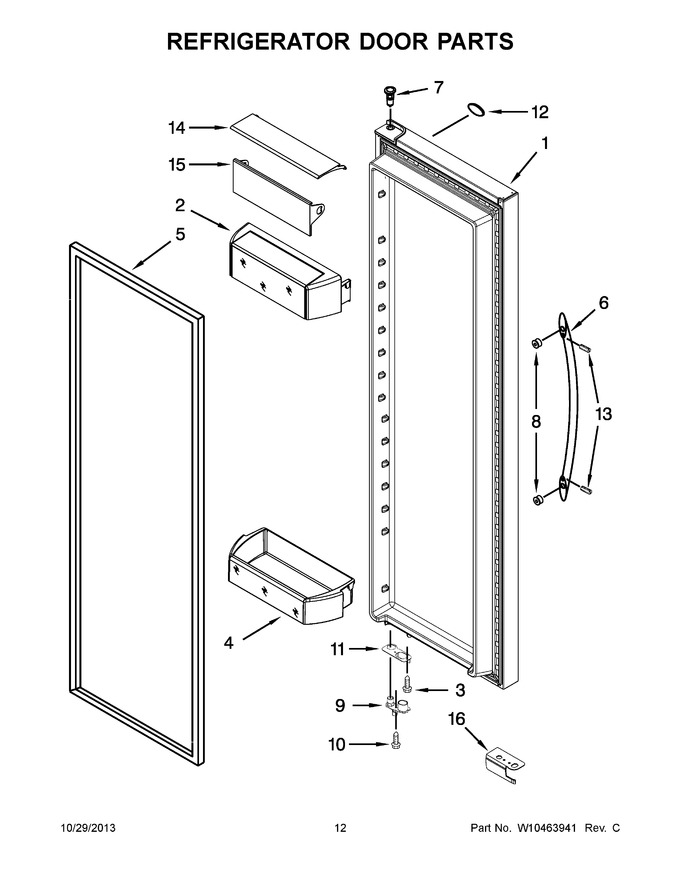

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10395378		Refrigerator Door (includes Item 5) (stainless Steel)		Appelez-nous	-
2	W10336573		Assembly, Door Compartment		Appelez-nous	-
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.52
4	WPW10335220		Bin, Gallon Door   (Replaces: W10335219)				$ 89.13
5	W10355582		Gasket, Door (grey)   (Replaces: W10249916)				$ 325.01
6	WPW10670421		Handle, Door (stainless)   (Replaces: W10274730)				$ 242.05
7	WP2182181		Thimble   (Replaces: 2200087)				$ 7.76
8	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
9	WPW10257203		Thimble (grey)   (Replaces: W10257203)				$ 12.34
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.85
11	W11037957		Bracket, Door Stop   (Replaces: W10247909)				$ 76.42
12	2220214		Nameplate, Whirlpool Gold				$ 32.43
13	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
14	WPW10316883		Lid, Utility Bin   (Replaces: W10316883)				$ 64.45
15	W10336570		Window, Door Compartment				$ 30.07
16	W11661847		Cover, Door Stop (grey)   (Replaces: W10257218)			Immediately	$ 30.20
