SELECT A DIAGRAM
New Model Search:

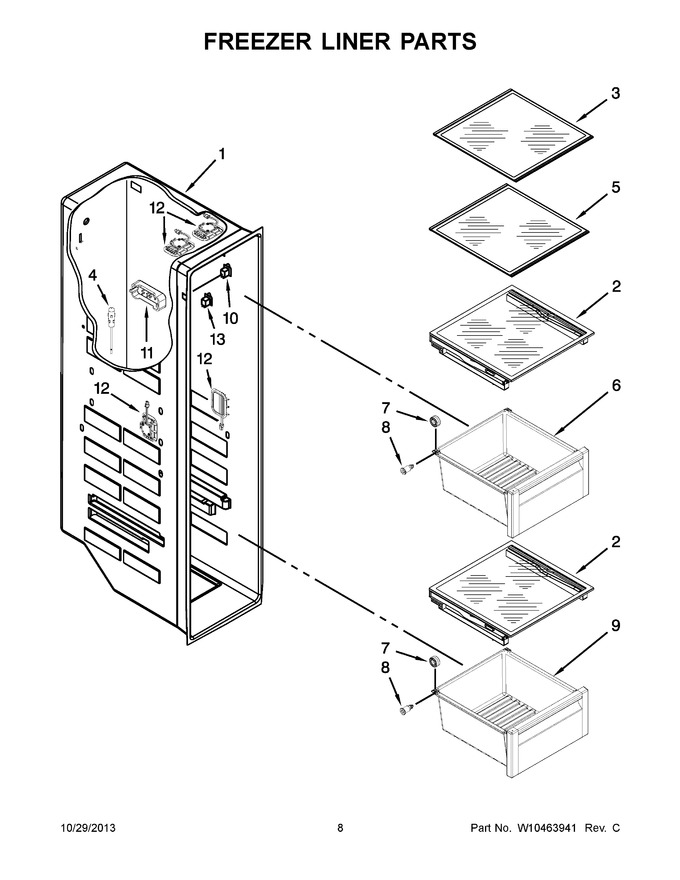

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10290890 | Cover Assembly |
|
$ 256.50 | |||||
| 3 | WPW10393383 | Shelf, Glass Upper (Replaces: W10393383) |
|
$ 259.69 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 32.00 | ||||
| 5 | WPW10393382 | Shelf, Glass Lower (Replaces: W10393382) |
|
$ 246.96 | |||||
| 6 | W10322533 | Pan, Freezer ? Upper (also Order Items 7 & 8) |
|
$ 130.96 | |||||
| 7 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 14.99 | ||||
| 8 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 34.80 | |||||
| 9 | W10322536 | Pan, Freezer ? Lower (also Order Items 7 & 8) |
|
$ 99.55 | |||||
| 10 | W11396033 | Switch, Light (Replaces: 12466114) |
|
Immediately | $ 37.30 | ||||
| 11 | W10425253 | Cover, Thermistor (Replaces: W10356632) |
|
- | |||||
| 12 | W11683241 | Light, Led Assembly (Replaces: W10279030) |
|
Immediately | $ 259.02 | ||||
| 13 | W11123943 | Switch, Rocker Arm (Replaces: W10419177) |
|
$ 34.91 |
