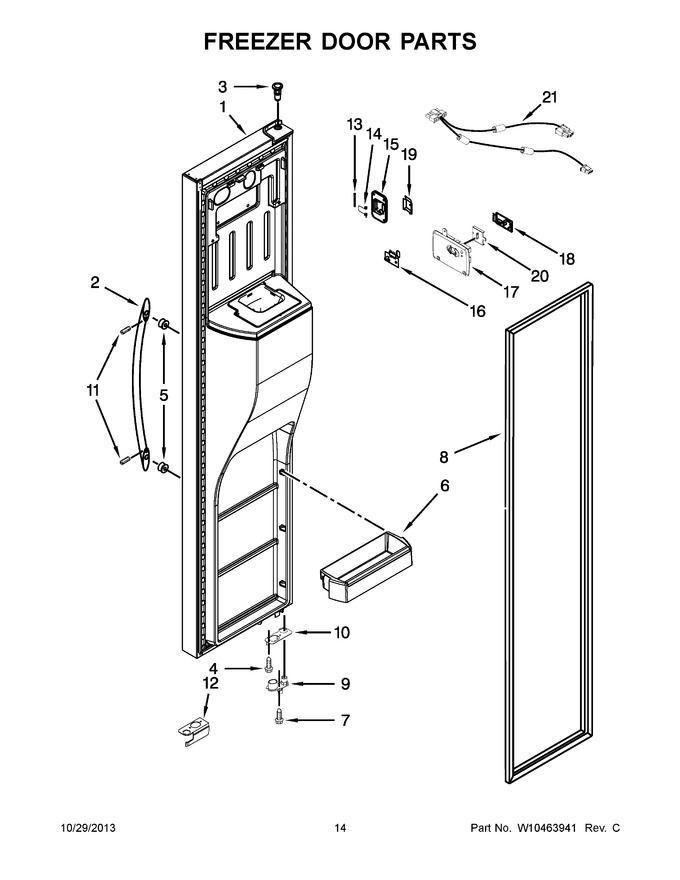

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10397058 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | WPW10670421 | Handle, Door (stainless) (Replaces: W10274730) |
|
$ 242.05 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 7.76 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.85 | |||||
| 5 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 6 | WPW10335218 | Bin, Door (Replaces: W10335217) |
|
$ 68.15 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.52 | |||||
| 8 | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 321.21 | |||||
| 9 | WPW10257206 | Thimble (grey) (Replaces: W10257206) |
|
Immediately | $ 12.55 | ||||
| 10 | W11293380 | Bracket, Door Stop (black) (Replaces: W10247907) |
|
$ 65.91 | |||||
| 11 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 12 | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10257223) |
|
$ 7.19 | |||||
| 13 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 17.76 | |||||
| 14 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 87.08 | |||||
| 15 | W10258502 | Cover, Emitter |
|
$ 85.47 | |||||
| 16 | W10870822 | Circuit Board, Emitter (Replaces: W10180607) |
|
Immediately | $ 222.54 | ||||
| 17 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 42.38 | |||||
| 18 | W11813704 | Circuit Board, Receiver (Replaces: W10296530) |
|
Immediately | $ 313.30 | ||||
| 19 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 75.86 | |||||
| 20 | W10258540 | Slide, Icemaker Shut Off |
|
$ 10.62 | |||||
| 21 | W10242369 | Harness, Emitter & Receiver |
|
$ 126.27 |
