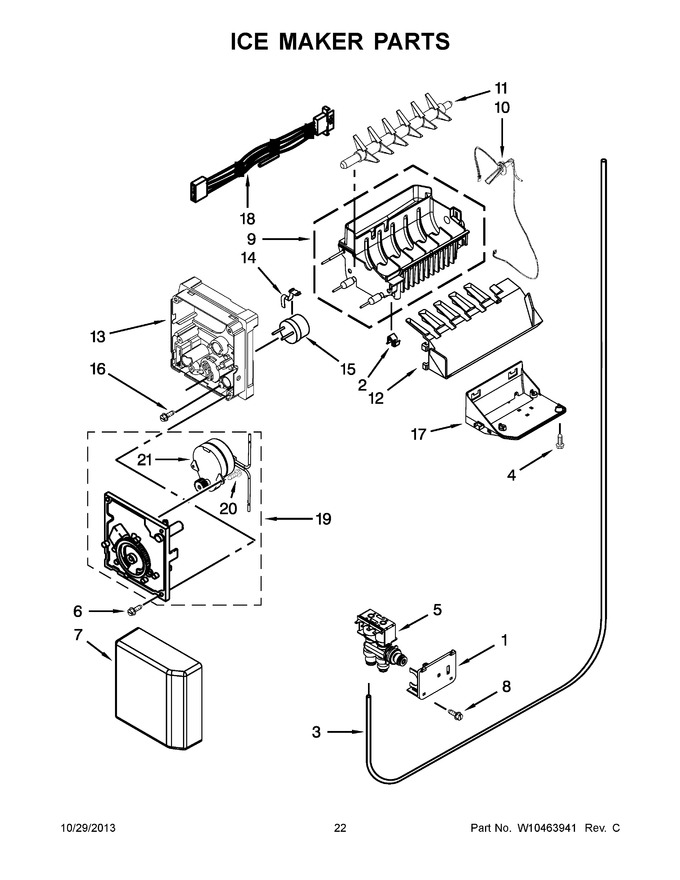

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10847867 | Bracket, Water Valve (Replaces: W10237915) |
|
$ 76.90 | |||||
| 2 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 3 | WPW10238092 | Tube, Water (Replaces: W10238092) |
|
Immediately | $ 125.94 | ||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 5 | WPW10258562 | Assembly, Water Valve (Replaces: W10258562) |
|
Immediately | $ 242.72 | ||||
| 6 | W10001240 | Screw |
|
$ 8.78 | |||||
| 7 | W10251088 | Cover |
|
$ 43.87 | |||||
| 8 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 21.16 | |||||
| 9 | W10251081 | Mold And Heater Assembly (also Order No.542638) |
|
$ 160.59 | |||||
| 10 | W10347034 | Assembly, Fill Tube |
|
$ 84.69 | |||||
| 11 | W10318644 | Ejector |
|
$ 26.59 | |||||
| 12 | W10747731 | Stripper, Ice (Replaces: W10251078) |
|
$ 90.28 | |||||
| 13 | WP2195914 | Housing, Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 14 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 15 | WP2321258 | Thermostat (also Order No.542369) (Replaces: 2321258) |
|
$ 98.98 | |||||
| 16 | 8533917 | Screw |
|
$ 13.37 | |||||
| 17 | W10251080 | Bracket, Mounting |
|
$ 93.86 | |||||
| 18 | W10242384 | Harness, Wiring (Replaces: W10242365) |
|
$ 125.36 | |||||
| 19 | 8201515 | Assembly, Module And Motor (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 20 | 489136 | Screw |
|
$ 10.29 | |||||
| 21 | N/P | Motor (not Serviced, Order No.19) |
|
- | |||||
| 100 | WPW10251076 | Complete Icemaker Assembly (Replaces: W10122576) |
|
Immediately | $ 238.23 |
