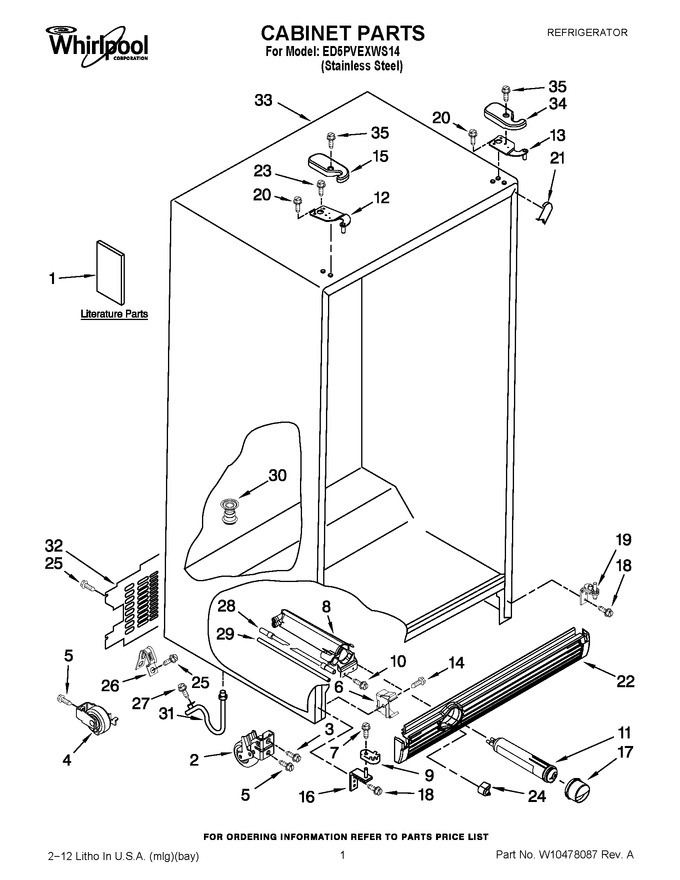

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10207987 | Service & Wiring Sheet |
|
- | |||||
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10305231 | Instruction Sheet, Door Removal |
|
- | |||||
| 1 | W10316634 | Use & Care Guide |
|
- | |||||
| 1 | W10296167 | Energy Guide |
|
- | |||||
| 2 | 2174748 | Front Roller |
|
- | |||||
| 3 | W10850698 | Screw 5/16 X 1.44 (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Rear Roller (Replaces: W10250570) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw 1/4-20 X 5/8 (Replaces: W10146358) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489483 | Screw 10-32 X 1/2 (Replaces: 489483) |
|
$ 11.41 | |||||
| 8 | WPW10121138 | Housing, Water Filter (Replaces: W10121138) |
|
Immediately | $ 112.91 | ||||
| 9 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 10 | WP489500 | Screw 10-32 X 5/8 (Replaces: 489500) |
|
$ 8.17 | |||||
| 11 | EDR3RXD1B | Water Filter (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 12 | W10242650 | Hinge, Top (fc) |
|
- | |||||
| 13 | W10242649 | Hinge, Top (rc) |
|
- | |||||
| 14 | WPW10141604 | Screw 8-32 X 3/8 (Replaces: W10141604) |
|
$ 8.85 | |||||
| 15 | WP2203407B | Hinge Cover Fc (Replaces: 2203407B) |
|
$ 20.50 | |||||
| 16 | W10138965 | Hinge, Bottom (fc) |
|
$ 93.91 | |||||
| 17 | WP2260518B | Cap, Water Filter (Replaces: 2260502B) |
|
Immediately | $ 28.26 | ||||
| 18 | WP489497 | Screw 12-24 X .818 (Replaces: W10142235) |
|
Immediately | $ 29.09 | ||||
| 19 | W10219817 | Hinge, Bottom (rc) |
|
- | |||||
| 20 | WP489497 | Screw 12-24 X .700 (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 21 | 2304848 | Filler, Wrapper |
|
- | |||||
| 22 | WPW10311033 | Grille (Replaces: W10311033) |
|
$ 184.91 | |||||
| 23 | WP489128 | Screw 8-32 X 3/8 (Replaces: 8281149) |
|
$ 11.40 | |||||
| 24 | WP2260503B | Button, Water (filter) (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 25 | WPW10141645 | Screw 8-15 X 1/2 (Replaces: W10141645) |
|
$ 8.05 | |||||
| 26 | 549193 | Clamp, Service Cord |
|
$ 14.06 | |||||
| 27 | WP489464 | Screw 8-18 X 1/2 (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 28 | W10281289 | Tube, Filter Inlet |
|
$ 57.80 | |||||
| 29 | WPW10350006 | Tube, Filter Outlet (Replaces: W10330344) |
|
$ 121.32 | |||||
| 30 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 31 | W11512417 | Extension Tube (Replaces: W10153550) |
|
$ 36.53 | |||||
| 32 | WP2188755 | Cover, Unit (Replaces: 2188735) |
|
$ 142.71 | |||||
| 33 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 34 | WP2203408B | Hinge Cover Rc (Replaces: 2203408B) |
|
$ 19.56 | |||||
| 35 | WP8281227 | Screw 8-32 X 1/2 (Replaces: 8281227) |
|
$ 10.96 |
