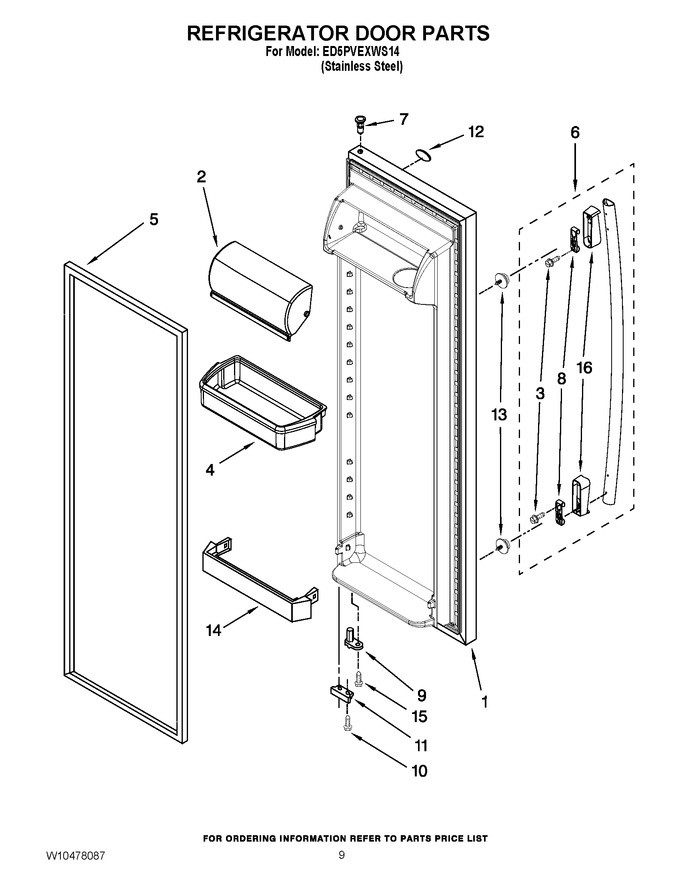

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10417997 | Refrigerator Door Includes Items 5, 7, 9, 10, 11 & 15) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | W10267047 | Screw 8-32 X 3/4 (Replaces: W10201588) |
|
$ 13.47 | |||||
| 4 | WPW10321304 | Door Bin (Replaces: W10321303) |
|
Immediately | $ 44.73 | ||||
| 5 | 2159083 | Door Gasket, Magnetic (Replaces: 2221313) |
|
$ 251.49 | |||||
| 6 | WPW10257118K | Handle (includes Items 3, 8 & 16) (Replaces: W10257118) |
|
$ 196.99 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2182181) |
|
$ 8.15 | |||||
| 8 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 9 | WP2182179 | Door Closer (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 10 | WPW10142233 | Screw 10-32 X 1/2 (Replaces: W10142233) |
|
$ 8.93 | |||||
| 11 | W10219812 | Bracket, Door Stop |
|
$ 24.48 | |||||
| 12 | WPW10393265 | Nameplate (Replaces: W10393265) |
|
Immediately | $ 73.15 | ||||
| 13 | WPW10288153 | Handle Stud (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 14 | WP2156022 | Trivet (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 15 | WP3400012 | Screw 10-32 X 1/2 (Replaces: W10142285) |
|
$ 8.26 | |||||
| 16 | W10127772 | Endcap, Handle |
|
$ 49.75 |
