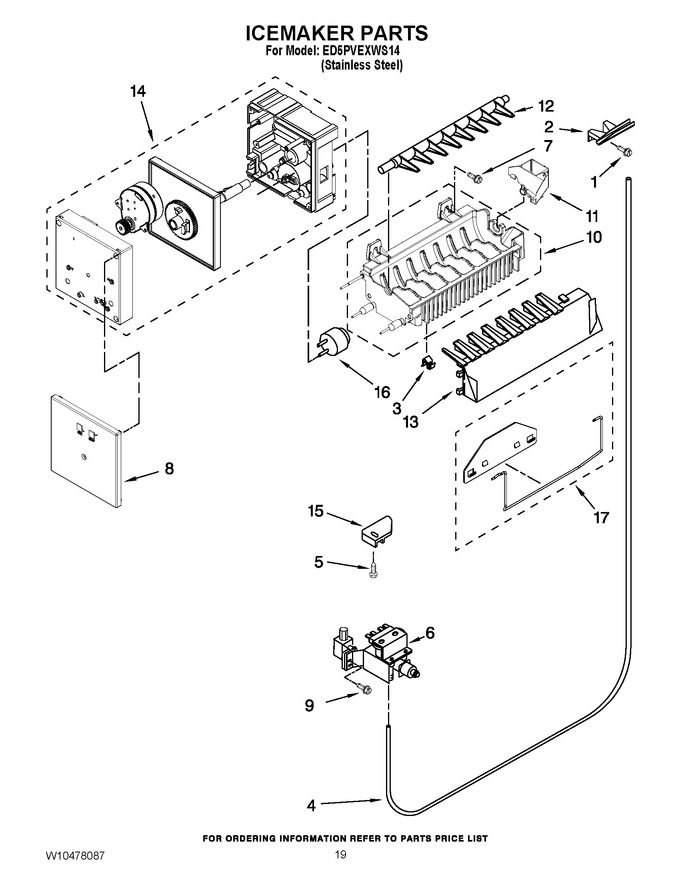

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489478 | Screw 8-18 X 1/2 (Replaces: W10001260) |
|
$ 8.18 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 35.32 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | W10823511 | Tube, Water (Replaces: 2223137) |
|
Immediately | $ 32.41 | ||||
| 5 | WP489478 | Screw 8-18 X 1/2 (Replaces: 489478) |
|
$ 8.18 | |||||
| 6 | W10408179 | Filter Valve Asm (Replaces: 2188708) |
|
Immediately | $ 96.38 | ||||
| 7 | W10141596 | Screw 8-15 X .813 |
|
$ 9.22 | |||||
| 8 | W10377174 | Cover |
|
$ 81.33 | |||||
| 9 | WPW10141625 | Screw 8-32 X 1/2 (Replaces: W10141625) |
|
$ 22.22 | |||||
| 10 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 11 | WPW10372171 | Cup Water Fill (Replaces: W10372171) |
|
$ 80.93 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 13 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 14 | WPW10281342 | Module And Motor Assembly (Replaces: W10281342) |
|
$ 280.48 | |||||
| 15 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 16 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: W10290336) |
|
$ 114.64 | |||||
| 17 | W10372199 | Shut Off Arm Assy |
|
- | |||||
| 100 | W10916040 | Complete Icemaker Assembly (Replaces: W10377149) |
|
$ 261.68 |
