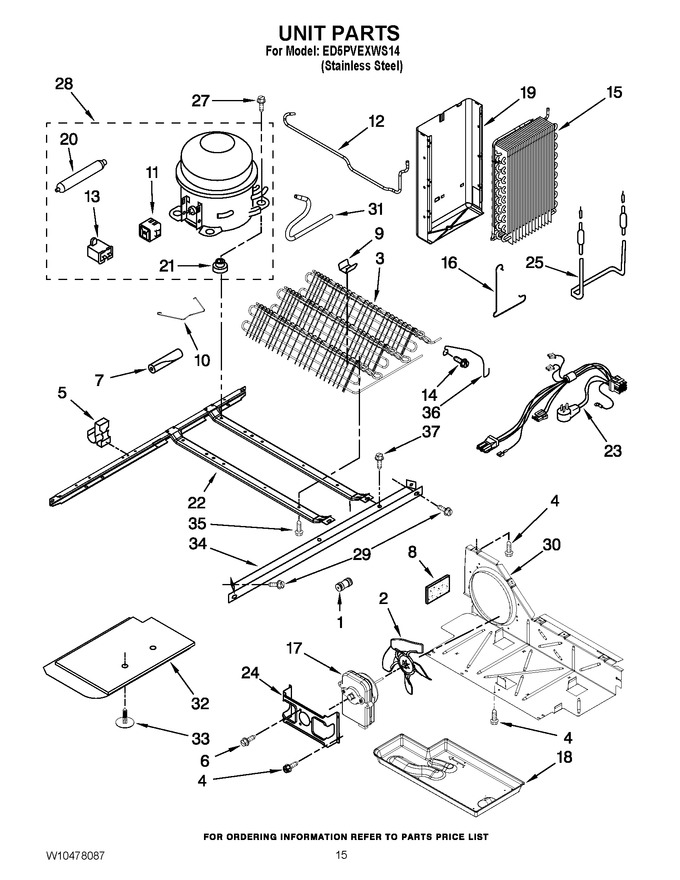

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10334458		Connector, Water   (Replaces: W10271540)				$ 22.67
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly   (Replaces: W10196260)				$ 323.45
4	WP489464		Screw 8-18 X 1/2   (Replaces: W10001250)			Immediately	$ 8.38
5	2208280		Clip, Wire		Appelez-nous	-
6	WP8533993		Screw 7-18 X 1/2   (Replaces: 8533993)				$ 11.21
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
8	2217070		Foam Pad				$ 22.08
9	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
10	W11661170		Clip, Retaining   (Replaces: W10174384)			Immediately	$ 11.87
11	WPW10189190		Start Device, Combination (start Relay And Overload)   (Replaces: W10189190)			Immediately	$ 131.29
12	W10528574		Tube Suction   (Replaces: W10177642)				$ 160.36
13	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
14	WP489478		Screw 8-15 X 1/2   (Replaces: W10001260)				$ 8.18
15	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
16	2161324		Clip		Appelez-nous	-
17	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
18	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
19	2217194		Heat Shield		Appelez-nous	-
20	WPW10143759		Drier   (Replaces: W10423407)			Immediately	$ 30.78
21	W11661108		Grommet   (Replaces: 2183042)				$ 15.21
22	W10196321		Unit Mounting Frame		Appelez-nous	-
23	WPW10309395		Unit, Harness   (Replaces: W10309395)				$ 308.35
24	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
25	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
27	W11661574		Screw 1/4 X 1.285   (Replaces: 489473)				$ 14.29
28	W10233961		Compressor (includes Items 11, 13, 20, & 21) (also Order 876765 Tube Kit)   (Replaces: W10183575)				$ 643.40
29	489340		Screw 5/16 X .630		Appelez-nous	-
30	W10896764		Air Baffle   (Replaces: W10411518)				$ 101.20
31	W10371237		Process Tube		Appelez-nous	-
32	2304899		Unit Cover, Bottom (includes Item 33)		Appelez-nous	-
33	489396		Clip				$ 11.26
34	2305374		Unit Mounting Rail				$ 84.67
35	W11544659		Screw 8-18 X 1-1/4   (Replaces: 8281232)				$ 14.35
36	2260517		Guard, Fan		Appelez-nous	-
37	WP489427		Screw 1/4-20 X 5/8   (Replaces: W10146358)				$ 7.84
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (5.0oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
