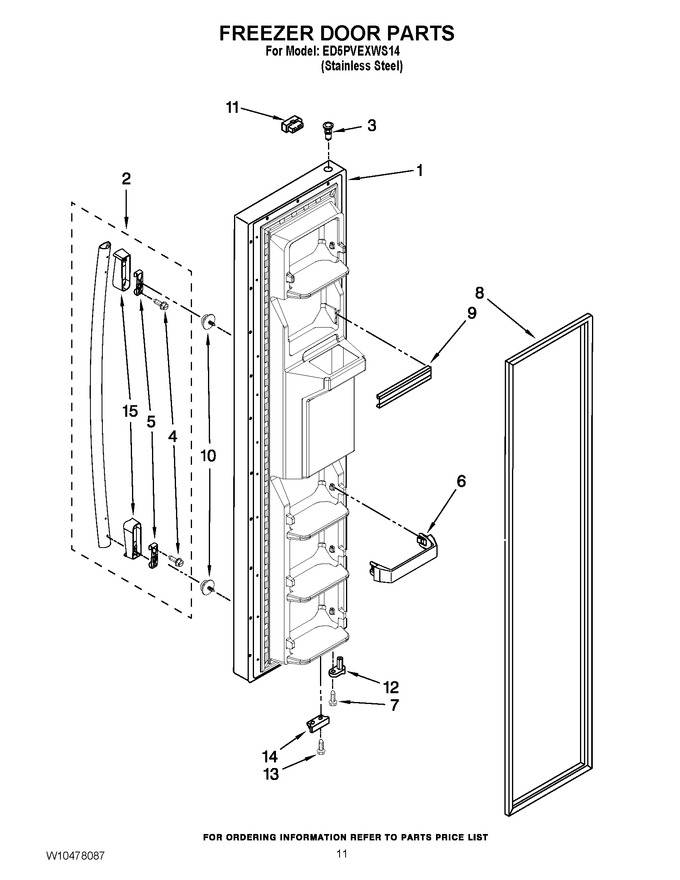

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10418005 | Freezer Door (includes Items 3, 7, 8, 12, 13, 14 And Dispenser Front Parts) |
|
- | |||||
| 2 | WPW10257118K | Handle (includes Items 4, 5 & 15) (Replaces: W10257118) |
|
$ 196.99 | |||||
| 3 | WP2182181 | Thimble-top (Replaces: 2182181) |
|
$ 8.15 | |||||
| 4 | W10267047 | Screw 8-32 X 3/4 (Replaces: W10201588) |
|
$ 13.47 | |||||
| 5 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 6 | WP2309718 | Trim, Door (Replaces: 2309718) |
|
$ 61.49 | |||||
| 7 | WP3400012 | Screw 10-32 X 1/2 (Replaces: W10142285) |
|
$ 8.26 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (Replaces: 2221314) |
|
$ 332.49 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307490) |
|
Immediately | $ 24.27 | ||||
| 10 | WPW10288153 | Handle Stud (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 11 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 | |||||
| 12 | WP2182179 | Door Closer (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WPW10142233 | Screw 10-32 X 1/2 (Replaces: W10142233) |
|
$ 8.93 | |||||
| 14 | W10219814 | Bracket, Door Stop |
|
- | |||||
| 15 | W10127772 | Endcap, Handle |
|
$ 49.75 |
