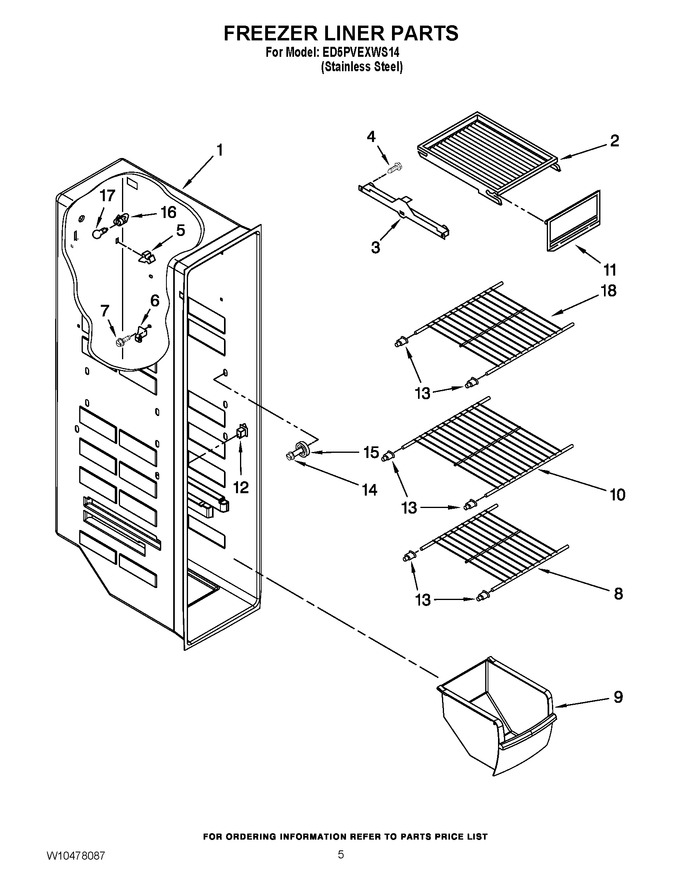

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | 2171714 | Shelf, Top Compartment |
|
- | |||||
| 3 | W10845585 | Slide, Container (left Side) (Replaces: 1119237) |
|
$ 139.41 | |||||
| 3 | W10845583 | Slide, Container (right Side) (Replaces: 1119293) |
|
$ 130.12 | |||||
| 4 | 718257 | Screw 8-15 X 1-3/8 (Replaces: 489100) |
|
- | |||||
| 5 | 2215823 | Clip, Air Duct (Replaces: 2315163) |
|
$ 10.94 | |||||
| 6 | 2196206 | Support, Stud |
|
- | |||||
| 7 | W10142289 | Screw 8-18 X 5/8 |
|
$ 9.61 | |||||
| 8 | WPW10318948 | Shelf, Wire (Replaces: W10318948) |
|
$ 155.23 | |||||
| 9 | W11577967 | Freezer Bin (Replaces: 2309757) |
|
$ 96.30 | |||||
| 10 | WPW10318947 | Shelf, Wire (Replaces: W10318947) |
|
$ 91.81 | |||||
| 11 | WP2171713 | Door, Ice Compartment (Replaces: 2171713) |
|
$ 91.63 | |||||
| 12 | W11396033 | Switch, Rocker Arm (Replaces: 12466114) |
|
Immediately | $ 37.30 | ||||
| 13 | WPW10130299 | Cup, Shelf Mount (Replaces: W10130299) |
|
Immediately | $ 14.70 | ||||
| 14 | W10191952 | Screw 8-18 X 1-3/8 |
|
$ 5.65 | |||||
| 15 | W11527119 | Stud Assembly (includes Item 14) (Replaces: W10173127) |
|
- | |||||
| 16 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 17 | W11679940 | Light Bulb (Replaces: W10311505) |
|
Immediately | $ 11.30 | ||||
| 18 | W10318946 | Shelf, Wire |
|
$ 37.05 |
