SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

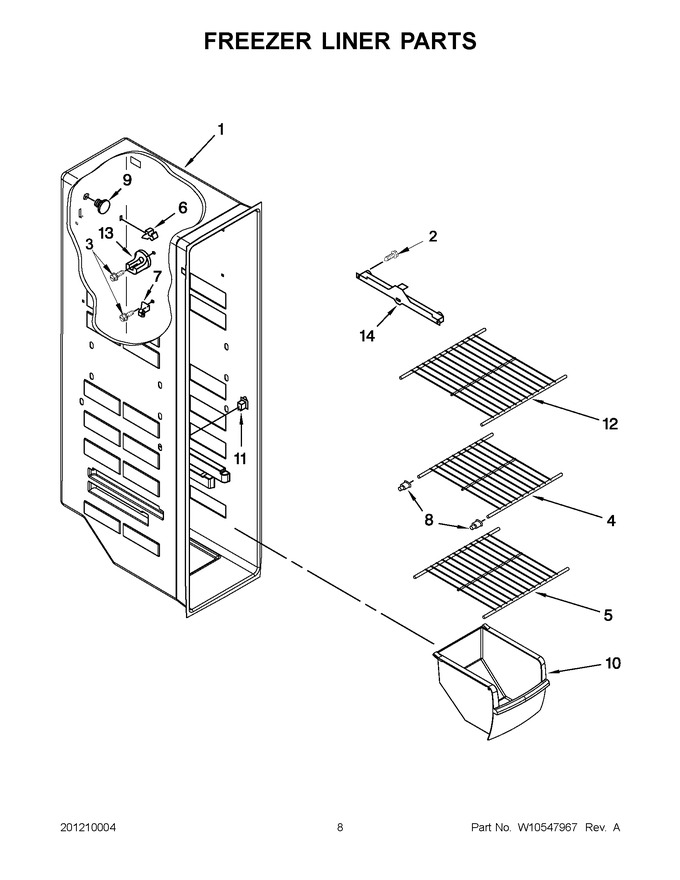

04 - Freezer Liner Parts


05 - Motor & Ice Container Parts


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Parts


09 - Unit Parts


10 - Ice Maker


11 - Control Box Parts


12 - Air Flow Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	718257		Screw   (Replaces: 489100)		Appelez-nous	-
3	W10142289		Screw, Seviceable Part, Freezer   (Replaces: 3400893)				$ 9.61
4	WPW10318948		Shelf, Wire   (Replaces: W10318948)				$ 155.23
5	WPW10318947		Shelf, Wire   (Replaces: W10318947)				$ 91.81
6	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
7	2196206		Support, Stud		Appelez-nous	-
8	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 14.70
9	940014		Hole Plug				$ 18.33
10	W11577967		Bin, Freezer   (Replaces: 2309757)				$ 96.30
11	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
12	W10318946		Shelf, Wire				$ 37.05
13	2196206		Support, Stud		Appelez-nous	-
14	W10845585		Slide, Ice Container (left)   (Replaces: 1119237)				$ 139.41
14	W10845583		Slide, Ice Container (right)   (Replaces: 1119293)				$ 130.12

    View Diagram in Separate Window       Print Part List
