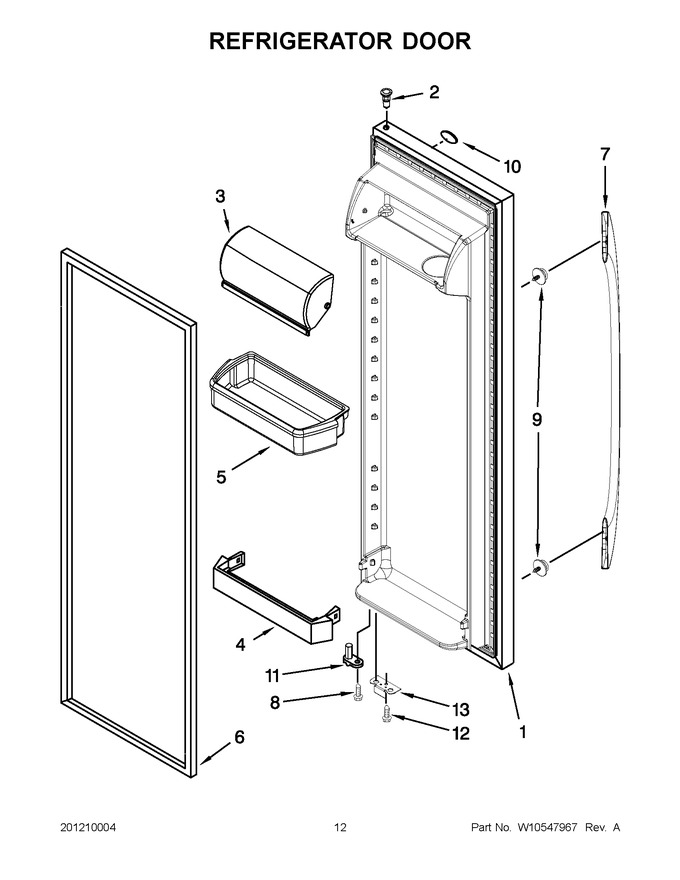

06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Parts


09 - Unit Parts


10 - Ice Maker


11 - Control Box Parts


12 - Air Flow Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10407713		Refrigerator Door (includes Item No.6) (white)		Appelez-nous	-
1	W10430228		Refrigerator Door (includes Item No.6) (stainless)		Appelez-nous	-
1	W10407712		Refrigerator Door (includes Item No.6) (black)		Appelez-nous	-
2	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
5	WPW10321304		Bin, Door   (Replaces: W10321304)			Immediately	$ 44.73
6	WPW10136734		Door Gasket, Magnetic (grey)   (Replaces: 2327163)				$ 335.39
6	2159075		Door Gasket, Magnetic (beige)   (Replaces: 2309528)			Immediately	$ 333.00
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2309529)				$ 251.49
7	WPW10439132		Handle, Door (grey)   (Replaces: W10439132)				$ 289.38
7	WPW10439229		Handle, Door (black)   (Replaces: W10439229)				$ 179.46
7	WPW10439228		Handle, Door (white)   (Replaces: W10439228)				$ 249.66
8	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
9	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
10	WPW10170766		Badge, Stainless   (Replaces: W10170766)			Immediately	$ 70.50
11	WP2182179		Door Closer Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	W10219801		Bracket, Door Stop (silver)				$ 5.27
13	W10507574		Bracket, Door Stop (grey)		Appelez-nous	-
13	W10219802		Bracket, Door Stop (black)				$ 5.62
