01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor & Ice Container Parts


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Parts


09 - Unit Parts


10 - Ice Maker


11 - Control Box Parts


12 - Air Flow Parts


13 - Optional Parts (not Included)

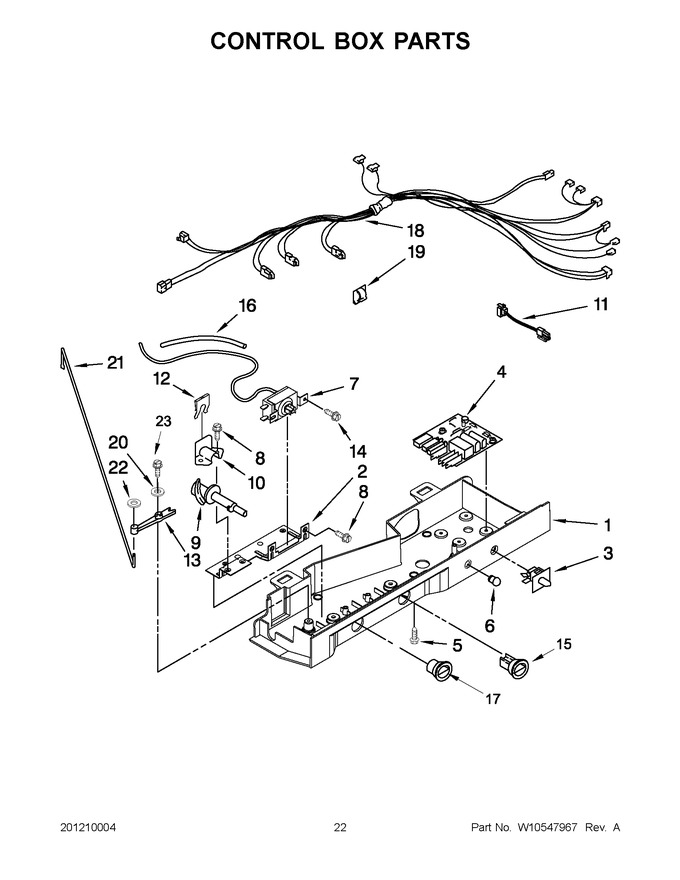

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10553058		Control Box   (Replaces: W10402260)		Appelez-nous	-
2	2311611		Mounting Bracket		Appelez-nous	-
3	WP2149705		Switch, Light   (Replaces: 2219875)			Immediately	$ 40.40
4	WPW10366605		Adaptive Defrost Control   (Replaces: W10366605)			Immediately	$ 276.28
5	489392		Screw   (Replaces: 489398)				$ 14.02
6	2200096		Lens, Light				$ 64.10
7	WPW10583800		Thermostat Assembly   (Replaces: W10396166)				$ 225.56
8	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
9	WP2182195		Cam Assembly Harness   (Replaces: 2182195)				$ 5.13
10	1110560		Bearing Body				$ 11.30
11	W10853646		Led Light Assembly   (Replaces: 2213462)				$ 130.80
12	WP2196062		Damper Control   (Replaces: 2196062)				$ 11.25
13	1110559		Pivot Arm				$ 8.35
14	WP965173		Screw   (Replaces: 487869)			Immediately	$ 11.87
15	W10723843		Knob, Thermostat   (Replaces: 2311614)				$ 27.92
16	WP2196003		Tube-barrier, Thermostat   (Replaces: 2196001)				$ 8.35
17	2311615		Knob, Control				$ 52.26
18	W10417924		Control Box Harness				$ 215.15
19	WP1115374		Clip, Wire   (Replaces: 1115374)				$ 8.14
20	489203		Spring Washer		Appelez-nous	-
21	2311631		Connecting Rod		Appelez-nous	-
22	489285		Fastener, Push-on		Appelez-nous	-
23	627068		Screw				$ 12.73
