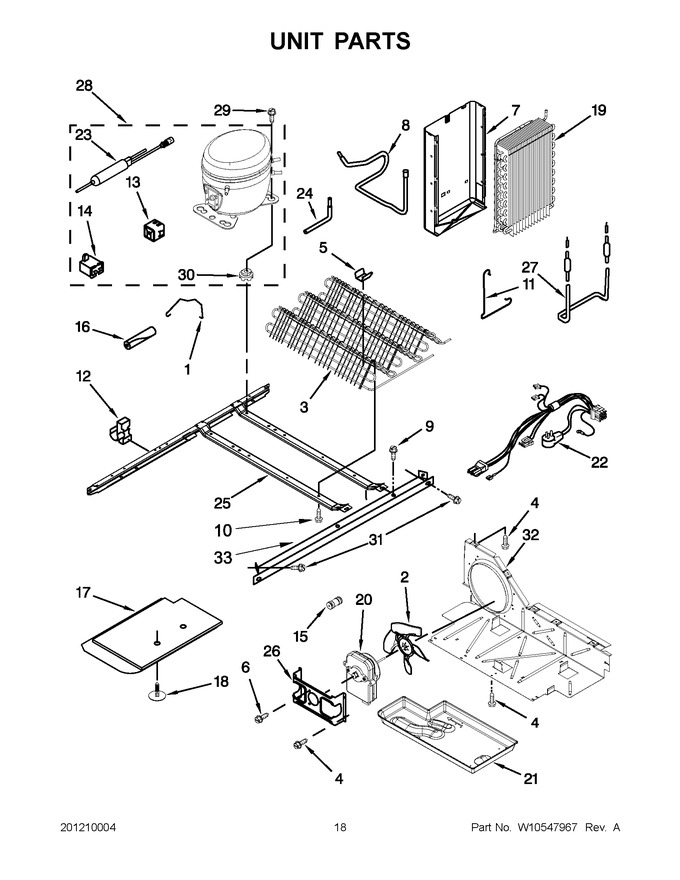

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10204187		Strap, Bale		Appelez-nous	-
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	W10683556		Clip, Wire   (Replaces: 2311725)				$ 19.38
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	W10194475		Heat Shield And Drain Pan		Appelez-nous	-
8	2205765		Tube, Suction				$ 36.04
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	W11544659		Screw   (Replaces: 8281232)				$ 14.35
11	2161324		Clip, Defrost Heater		Appelez-nous	-
12	2208280		Clip, Wire And Tube		Appelez-nous	-
13	WPW10194431		Start Device, Combination (start Relay And Overload) For Service Compressor Only   (Replaces: W10194431)			Immediately	$ 86.85
14	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
15	WP2300868		Connector, Water Tube   (Replaces: W10271541)			Immediately	$ 29.05
16	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 21.32
17	W10466698		Unit Cover, Bottom				$ 103.75
18	489396		Clip				$ 11.26
19	WP2188823		Evaporator To Heat Loop   (Replaces: 2188823)			Immediately	$ 381.49
20	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
21	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
22	W11580023		Unit, Harness   (Replaces: W10417928)				$ 79.01
23	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
24	2325479		Tube, Process		Appelez-nous	-
25	W10196321		Frame, Unit Mounting		Appelez-nous	-
26	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.93
27	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
28	WPW10463858		Compressor   (Replaces: W10405532)				$ 639.45
29	W11417341		Screw   (Replaces: W10476309)				$ 14.07
30	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
31	489340		Bolt		Appelez-nous	-
32	W10332806		Air Baffle				$ 102.82
33	W10196313		Unit Mounting Rail		Appelez-nous	-
NI	978028		Valve, Access (œ``)		Appelez-nous	-
NI	978029		Valve, Access (œ``)				$ 93.85
NI	978030		Valve, Access (Ÿ``)				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	N/P		Refrigerant Charge 5.5 Oz (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access			Immediately	$ 134.49
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
