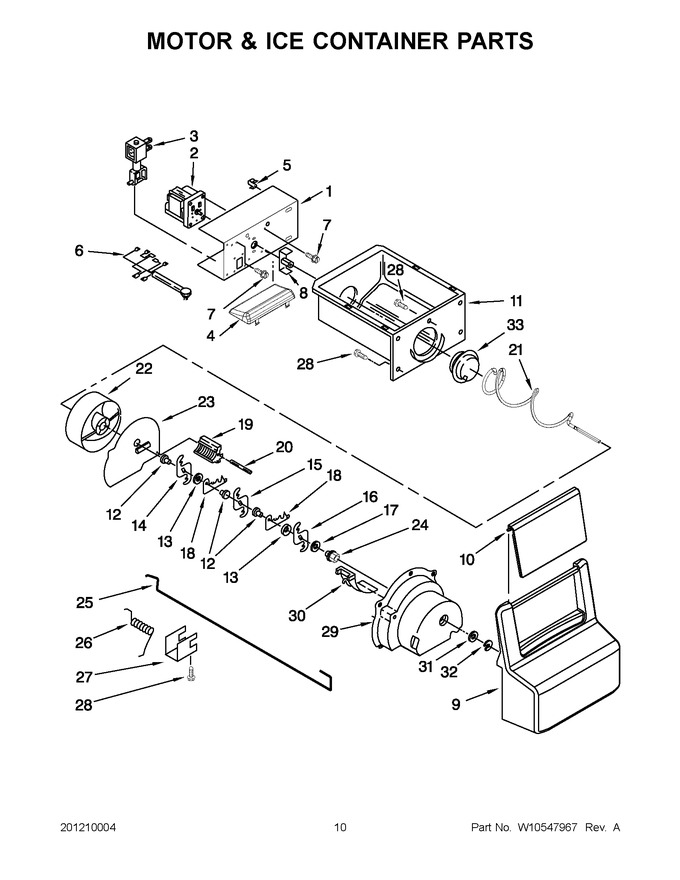

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10397980 | Bracket, Motor |
|
- | |||||
| 2 | W11671282 | Motor, Dispenser (Replaces: W10317991) |
|
Immediately | $ 110.51 | ||||
| 3 | WP2152713 | Solenoid Assembly (Replaces: 2152713) |
|
$ 250.11 | |||||
| 4 | WPW10515057 | Led Light Assembly Tapered Lens (Replaces: W10398007) |
|
Immediately | $ 47.29 | ||||
| 5 | WP1115374 | Clip, Wire (Replaces: 1115374) |
|
$ 8.14 | |||||
| 6 | W10417930 | Wiring Assembly, Ice Dispenser |
|
$ 119.45 | |||||
| 7 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 8 | WPW10169511 | Coupling, Motor (Replaces: W10169511) |
|
$ 24.51 | |||||
| 9 | W11427433 | Front Cover, Ice Container (Replaces: W10189191) |
|
$ 111.13 | |||||
| 10 | W10406980 | Ice Door |
|
- | |||||
| 11 | WPW10670845 | Ice Container (Replaces: 2196091) |
|
$ 199.19 | |||||
| 12 | W10189661 | Spacer, Step |
|
$ 53.48 | |||||
| 13 | W11032808 | Spacer, Flat (Replaces: W10189658) |
|
$ 10.63 | |||||
| 14 | W10278731 | Blade, Rotary A |
|
$ 90.87 | |||||
| 15 | W10278732 | Blade, Rotary B |
|
$ 91.00 | |||||
| 16 | W10278733 | Blade, Rotary C |
|
$ 91.00 | |||||
| 17 | 489234 | Washer, Plain Upper Cam |
|
$ 14.04 | |||||
| 18 | W10181990 | Blade, Fixed |
|
- | |||||
| 19 | W10138203 | Block, Blade (Replaces: W10189708) |
|
- | |||||
| 20 | 489229 | Roll Pin |
|
$ 48.47 | |||||
| 21 | WPW10295082 | Auger (Replaces: W10295082) |
|
$ 171.61 | |||||
| 22 | 4388736 | Drum (Replaces: 2305377) |
|
$ 96.97 | |||||
| 23 | W10852691 | Baffle, Floating (Replaces: 2171682) |
|
Immediately | $ 34.85 | ||||
| 24 | WP1119018 | Nut, Bearing (Replaces: 1119018) |
|
$ 7.90 | |||||
| 25 | W11596045 | Control Arm (Replaces: 2155231) |
|
$ 35.51 | |||||
| 26 | 1119020 | Spring, Return |
|
$ 19.13 | |||||
| 27 | 1119021 | Retainer Clip, Rod Dispenser |
|
$ 10.96 | |||||
| 28 | WP488787 | Screw (Replaces: 488886) |
|
$ 11.26 | |||||
| 29 | WPW10185018 | Housing, Crusher (Replaces: W10185018) |
|
$ 130.65 | |||||
| 30 | WP1119017 | Deflecter, Ice (Replaces: 1119017) |
|
$ 7.95 | |||||
| 31 | 489234 | Washer, Plain Upper Cam |
|
$ 14.04 | |||||
| 32 | WP489236 | Ring, Retainer (Replaces: 489236) |
|
Immediately | $ 12.78 | ||||
| 33 | W10749708 | Coupling, Ice Conveyor (Replaces: 983668) |
|
$ 27.44 | |||||
| 100 | WPW10558423 | Ice Container, Complete (Replaces: W10406981) |
|
$ 332.34 |
