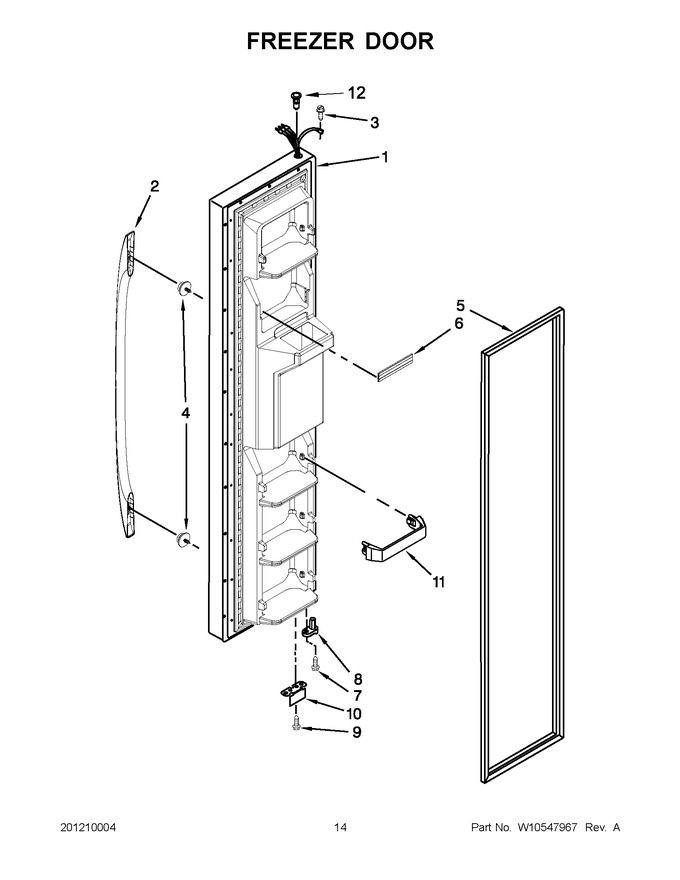

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10408311		Freezer Door (includes Item No.5 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
1	W10408309		Freezer Door (includes Item No.5 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10408310		Freezer Door (includes Item No.5 And Dispenser Front Parts) (black)		Appelez-nous	-
2	WPW10439132		Handle, Door (grey)   (Replaces: W10439132)				$ 289.38
2	WPW10439229		Handle, Door (black)   (Replaces: W10439229)				$ 179.46
2	WPW10439228		Handle, Door (white)   (Replaces: W10439228)				$ 249.66
3	WP489128		Screw   (Replaces: 488500)				$ 11.40
4	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
5	W10136735		Door Gasket, Magnetic (grey)   (Replaces: 2327164)				$ 254.84
5	2159074		Door Gasket, Magnetic (beige)   (Replaces: 2309532)				$ 325.70
5	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 332.49
6	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 21.16
9	WP489483		Screw   (Replaces: 489420)				$ 11.41
10	2306940		Bracket, Door Stop (silver)				$ 101.93
10	W10507570		Bracket, Door Stop (grey)		Appelez-nous	-
10	2306940B		Bracket, Door Stop (black)				$ 38.97
11	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
12	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
