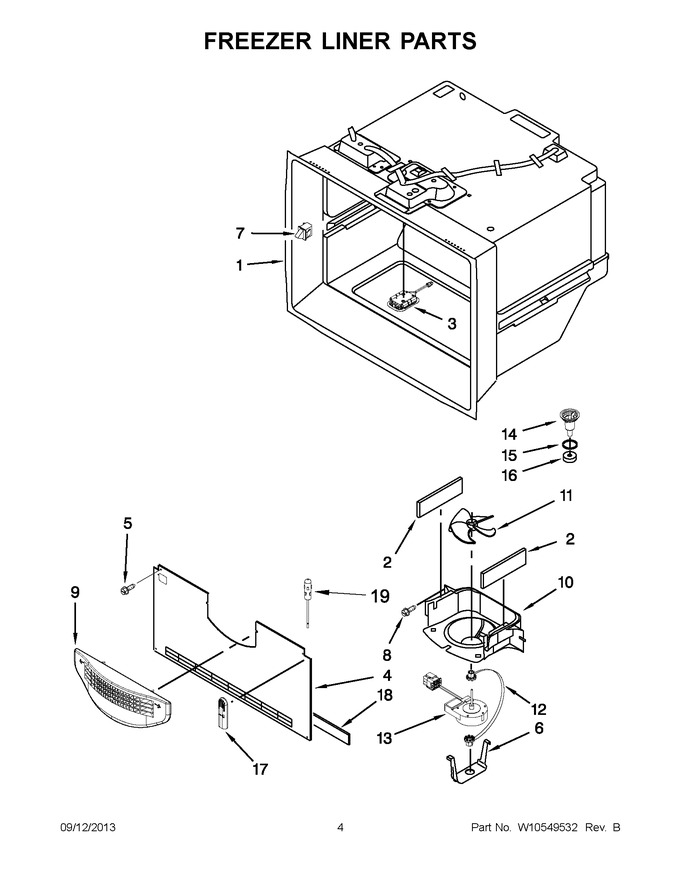

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10856123		Gasket, Foam   (Replaces: A3189392)			Immediately	$ 8.06
3	WPW10456436		Module, Led   (Replaces: W10456436)				$ 333.62
4	W10513428		Cover, Evaporator		Appelez-nous	-
5	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
6	W11712696		Clip, Fan Motor   (Replaces: 12956601)			Immediately	$ 12.24
7	W11384469		Switch, Light   (Replaces: C3680310V)			Immediately	$ 39.09
8	WP98165		Screw   (Replaces: 12990504)				$ 8.57
9	W10871842		Grille, Air (freezer)   (Replaces: W10496613)				$ 15.58
10	WPW10363507		Shroud, Evaporator Fan   (Replaces: W10363507)				$ 86.36
11	WP67006337		Blade, Fan   (Replaces: 12986101)			Immediately	$ 90.45
12	W11676465		Grommet, Fan Motor   (Replaces: 12951101)			Immediately	$ 15.56
13	W11452196		Motor, Evaporator (includes Harness, Thermistor, & Defrost Thermostat)   (Replaces: W10561029)			Immediately	$ 227.28
14	W10503218		Funnel, Drain			Immediately	$ 18.64
15	WPM0500703		Seal   (Replaces: M0500703)				$ 11.47
16	WPB8381501		Gasket, Drain   (Replaces: B8381501)				$ 7.78
17	W11661208		Cover, Thermistor   (Replaces: W10405166)				$ 23.28
18	W10668165		Gasket, Dual Evaporator   (Replaces: W10531268)		Appelez-nous	-
19	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 33.60
