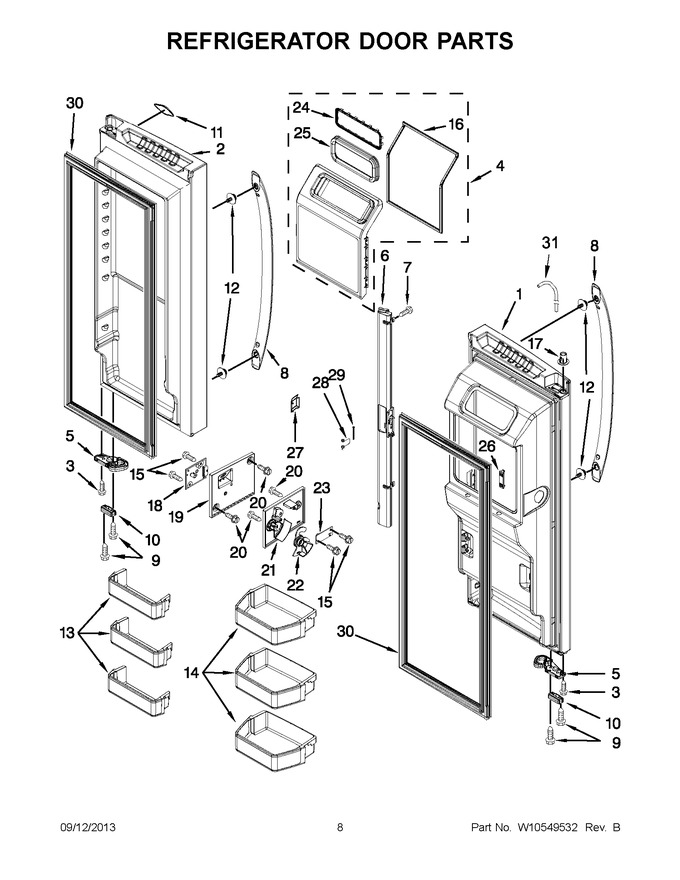

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10307047 | Door, Left (white) |
|
- | |||||
| 1 | W10422783 | Door, Left (stainless) |
|
- | |||||
| 1 | W10422782 | Door, Left (black) |
|
- | |||||
| 2 | W10422770 | Door, Right (black) |
|
- | |||||
| 2 | W10307065 | Door, Right (white) |
|
- | |||||
| 2 | W10422771 | Door, Right (stainless) |
|
- | |||||
| 3 | WPW10464016 | Screw (Replaces: W10464016) |
|
$ 12.32 | |||||
| 4 | W10549593 | Ice Door Assembly |
|
$ 214.39 | |||||
| 5 | WPW10372267 | Latch, Door (right Hand) (Replaces: W10372267) |
|
$ 13.31 | |||||
| 5 | W10857643 | Latch, Door (left Hand) (Replaces: W10355634) |
|
$ 83.58 | |||||
| 6 | W10846151 | Mullion, Door (white) (Replaces: W10407252) |
|
$ 133.95 | |||||
| 6 | W10698196 | Mullion, Door (black) (Replaces: W10407253) |
|
$ 138.15 | |||||
| 6 | W10806457 | Mullion, Door (grey) (Replaces: W10407254) |
|
Immediately | $ 270.14 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 8 | WPW10439227 | Handle, Door (stainless) (Replaces: W10439227) |
|
$ 239.20 | |||||
| 8 | WPW10439228 | Handle, Door (white) (Replaces: W10439228) |
|
$ 237.77 | |||||
| 8 | WPW10439229 | Handle, Door (black) (Replaces: W10439229) |
|
$ 170.91 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 10 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 14.22 | |||||
| 11 | WPW10170766 | Badge, Maytag (Replaces: W10170766) |
|
Immediately | $ 67.14 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 13 | W10838874 | Trivet Assembly (Replaces: W10555428) |
|
Immediately | $ 82.18 | ||||
| 14 | WPW10522064 | Bucket, Gallon (Replaces: W10522064) |
|
$ 82.30 | |||||
| 15 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.13 | |||||
| 16 | W11624997 | Gasket, Ice Door (Replaces: W10347085) |
|
$ 66.10 | |||||
| 17 | W10562834 | Clip, Tube (Replaces: W10245516) |
|
$ 14.91 | |||||
| 18 | W11813704 | Circuit Board, Receiver (Replaces: W10518658) |
|
Immediately | $ 313.30 | ||||
| 19 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 42.38 | |||||
| 20 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 21 | W10258502 | Cover, Emitter |
|
$ 85.47 | |||||
| 22 | W10258540 | Slide, Icemaker Shut Off |
|
$ 10.62 | |||||
| 23 | W10870822 | Circuit Board, Emitter (Replaces: W10518659) |
|
Immediately | $ 222.54 | ||||
| 24 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 30.78 | |||||
| 25 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 46.64 | |||||
| 26 | W10535700 | Vent, Thermistor |
|
- | |||||
| 27 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 75.86 | |||||
| 28 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 87.08 | |||||
| 29 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 17.76 | |||||
| 30 | W10407212 | Gasket, Door (grey) (Replaces: W10407146) |
|
Immediately | $ 254.40 | ||||
| 30 | W10861004 | Gasket, Door (black) (Replaces: W10407145) |
|
$ 315.40 | |||||
| 30 | W11678967 | Gasket, Door (white) (Replaces: W10249089) |
|
$ 229.41 | |||||
| 31 | WPW10515777 | Tube, Water (Replaces: W10515777) |
|
$ 111.67 |
