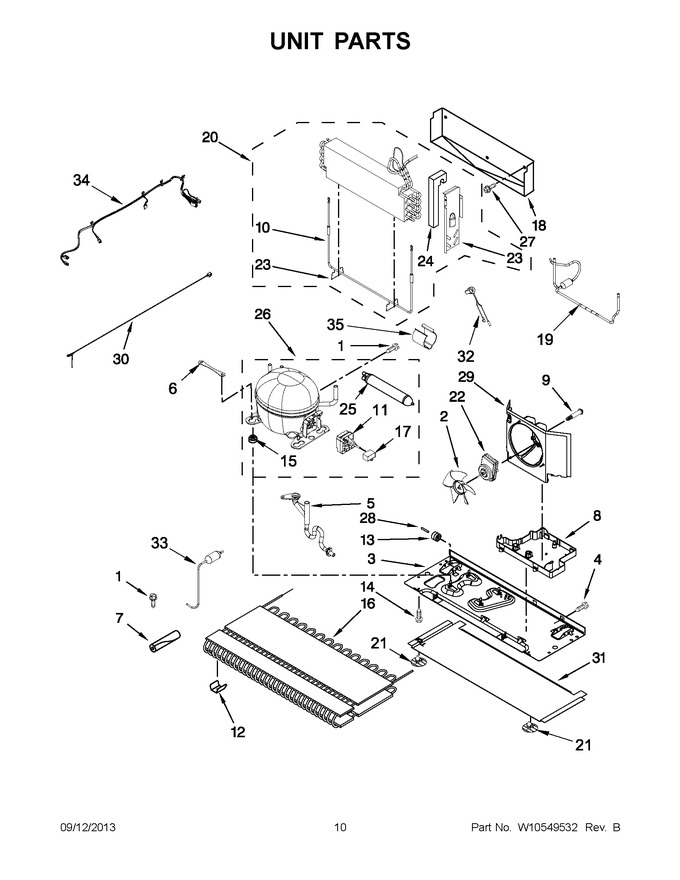

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10142255 | Screw |
|
- | |||||
| 2 | W10156818 | Blade, Fan (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 3 | W10570074 | Baseplate |
|
$ 141.28 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 5 | W11712703 | Extension, Drain (Replaces: W10553833) |
|
$ 42.71 | |||||
| 6 | W10236396 | Strap, Compressor |
|
Immediately | $ 19.82 | ||||
| 7 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 20.30 | ||||
| 8 | W10703218 | Tray, Evaporator (Replaces: W10238584) |
|
$ 192.66 | |||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 12.65 | |||||
| 10 | WP12729128 | Heater, Defrost (Replaces: 12729128) |
|
Immediately | $ 97.71 | ||||
| 11 | WPW10197428 | Start Device, Combination (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 18.46 | |||||
| 13 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 14 | 12992101 | Screw |
|
- | |||||
| 15 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.19 | ||||
| 16 | W11760073 | Condenser Assembly (Replaces: W10627646) |
|
$ 160.76 | |||||
| 17 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 18 | W10512220 | Drip Tray |
|
- | |||||
| 19 | WPW10463542 | Tube, Suction (Replaces: W10463542) |
|
$ 92.32 | |||||
| 20 | WPW10608485 | Evaporator (Replaces: W10248589) |
|
Immediately | $ 354.92 | ||||
| 21 | W10296661 | Clip, Bottom Cover |
|
$ 16.93 | |||||
| 22 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 23 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 141.12 | |||||
| 24 | W10491355 | Gasket, Airdam |
|
$ 21.22 | |||||
| 25 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 26 | WPW10466675 | Compressor (Replaces: W10474685) |
|
$ 794.79 | |||||
| 27 | W11544659 | Screw (Replaces: W10142294) |
|
$ 13.67 | |||||
| 28 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.52 | ||||
| 29 | WPW10406719 | Shroud (Replaces: W10406719) |
|
$ 78.32 | |||||
| 30 | WPW10494227 | Cord, Power (Replaces: W10494227) |
|
$ 80.67 | |||||
| 31 | W10278140 | Unit Cover, Bottom |
|
$ 89.57 | |||||
| 32 | W11452196 | Thermostat, Defrost (motor, Evaporator (includes Harness, Thermistor, & Defrost Thermostat)) (Replaces: W10561029) |
|
Immediately | $ 216.46 | ||||
| 33 | W10467035 | Assembly, Muffler/discharge Tube |
|
- | |||||
| 34 | W10528619 | Wire Harness |
|
$ 113.76 | |||||
| 35 | W10281329 | Clip, Drier |
|
$ 13.08 | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 91.35 | ||||
| NI | N/P | Refrigerant Charge 5.25 Oz. (r-134a) |
|
- |
