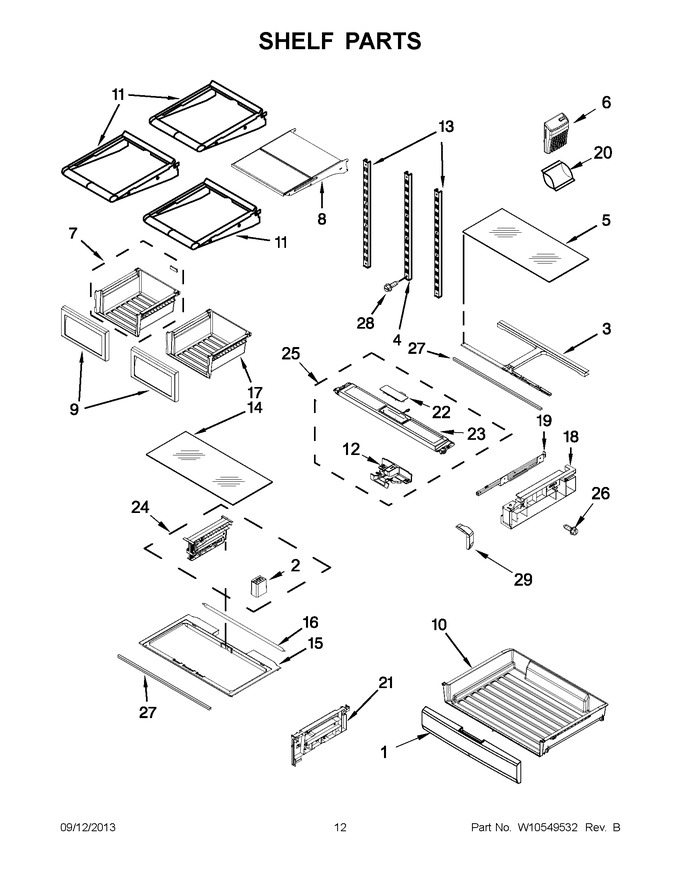

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10559660		Front, Pantry   (Replaces: W10525198)				$ 232.50
2	W10530315		Support, Crisper				$ 16.19
3	W10515051		Support, Pantry				$ 62.37
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 34.18
5	WPW10248799		Glass, Pantry   (Replaces: W10248799)				$ 214.36
6	WPW10408747		Holder, Filter   (Replaces: W10408747)				$ 31.06
7	W10422682		Pan, Crisper				$ 62.37
8	WPW10402712		Shelf-tuck   (Replaces: W10402712)				$ 210.56
9	W10847546		Front Assembly, Crisper   (Replaces: W10524913)			Immediately	$ 107.98
10	W10514690		Pan, Pantry		Appelez-nous	-
11	WPW10402695		Shelf Assembly   (Replaces: W10402695)				$ 204.52
12	W10512596		Knob, Pantry Temp Control		Appelez-nous	-
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 48.21
14	WPW10248578		Glass, Crisper   (Replaces: W10248578)				$ 315.91
15	WPW10397044		Cover, Crisper   (Replaces: W10397044)				$ 120.14
16	WPW10248967		Support, Rear   (Replaces: W10248967)				$ 75.32
17	W10850129		Pan, Crisper   (Replaces: W10410352)			Immediately	$ 145.86
18	W10248796		Plate, Side Pantry (right Hand)				$ 117.17
18	W10248798		Plate, Side Pantry (left Hand)				$ 97.50
19	W10508326		Slide, Pantry (right Hand)				$ 296.65
19	W10508327		Slide, Pantry (left Hand)				$ 286.73
20	W10346771		Filter, Produce Preserver		Appelez-nous	-
21	W10530310		Plate, Crisper (right Hand)				$ 26.72
21	W11173721		Plate, Crisper (left Hand)   (Replaces: W10530311)				$ 35.25
22	W10554281		Housing, Pantry Temp Control		Appelez-nous	-
23	W10525200		Cover, Pantry Top		Appelez-nous	-
24	W10549606		Track Assembly, Crisper				$ 117.33
25	W10554737		Cover Assembly, Front Pantry		Appelez-nous	-
26	W10185612		Screw				$ 6.74
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 127.67
28	W10423560		Screw		Appelez-nous	-
29	W10426797		Front, Sideplate (pantry) (right Hand)				$ 30.85
29	W10426799		Front, Sideplate (pantry) (left Hand)		Appelez-nous	-
