Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10307062		Freezer Door (white)		Appelez-nous	-
1	W10422790		Freezer Door (black)		Appelez-nous	-
1	W10422791		Freezer Door (stainless)		Appelez-nous	-
2	W10439225		Handle, Door (black)		Appelez-nous	-
2	W10439057		Handle, Door (white)		Appelez-nous	-
2	W10439226		Handle, Door (stainless)				$ 140.15
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
4	W10503521		Shaft-rack				$ 26.67
5	W11668671		Bracket Assembly (right Hand)   (Replaces: W10625068)			Immediately	$ 529.03
5	W11668671		Bracket Assembly (left Hand)   (Replaces: W10625067)			Immediately	$ 529.03
6	W10590552		Pan Assembly, Lower		Appelez-nous	-
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
8	W10557676		Pan Assembly, Upper		Appelez-nous	-
9	W10852685		Clip, Shaft   (Replaces: W10248509)				$ 11.39
10	W10507444		Divider, Lower				$ 62.14
11	WPW10485096		Stop, Pan (left Hand)   (Replaces: W10485096)				$ 83.65
11	WPW10485089		Stop, Pan (right Hand)   (Replaces: W10485089)				$ 86.71
12	WPW10485654		Divider, Upper   (Replaces: W10485654)				$ 66.81
13	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 155.10
14	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 8.33
15	W10407216		Gasket, Door (grey)   (Replaces: W10248749)			Immediately	$ 267.66
15	W10407215		Gasket, Door (black)   (Replaces: W10248748)				$ 317.99
15	W10638486		Gasket, Door (white)   (Replaces: W10249094)				$ 337.00

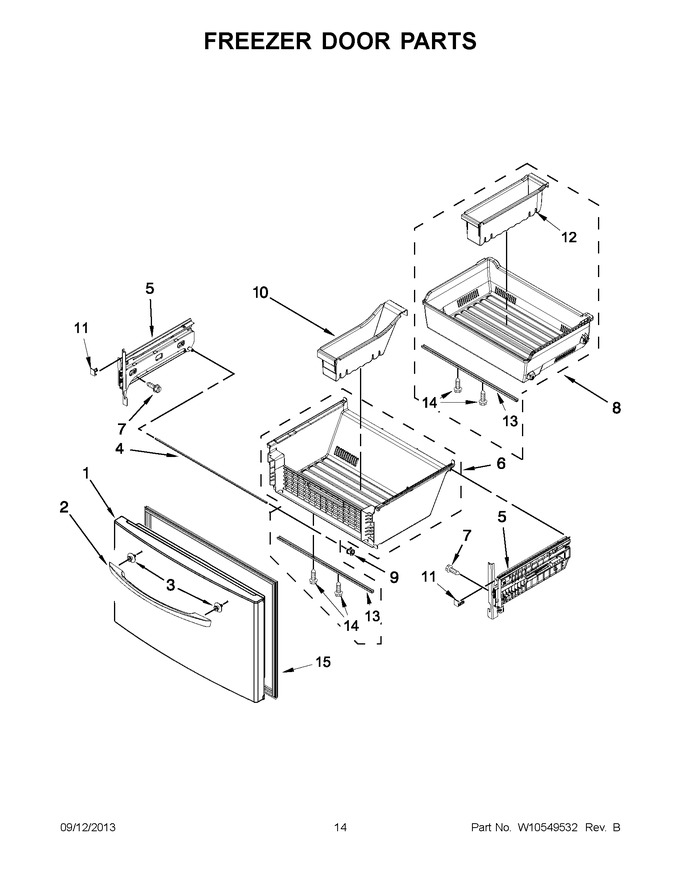

    View Diagram in Separate Window       Print Part List
