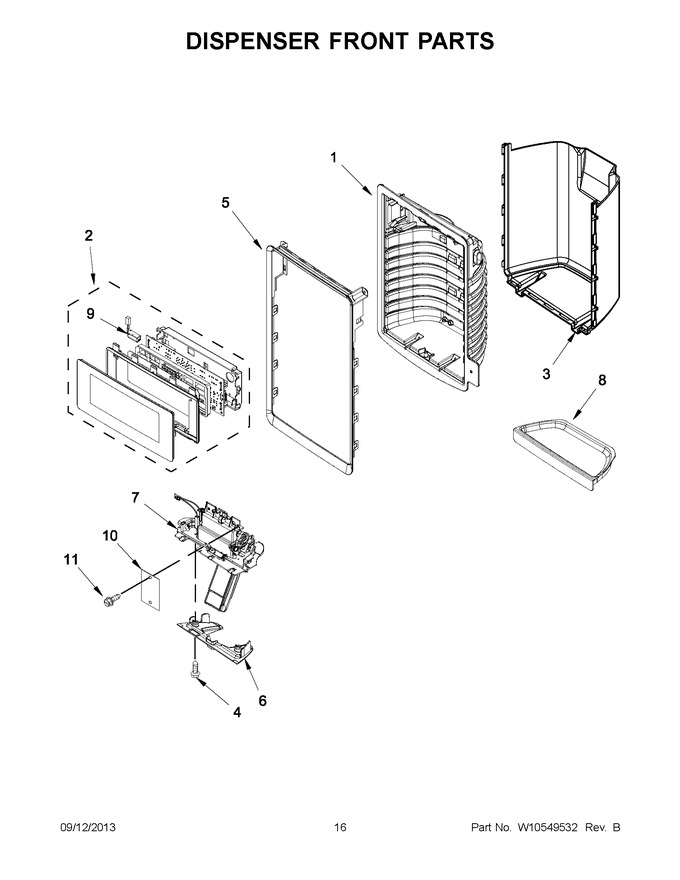

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10639092		Ui Assembly (black)   (Replaces: W10560266)				$ 329.22
2	WPW10560267		Ui Assembly (stainless)   (Replaces: W10560267)				$ 633.24
2	WPW10560272		Ui Assembly (white)   (Replaces: W10560272)				$ 457.23
3	W10427126		False Wall, Dispenser (white)		Appelez-nous	-
3	W10427119		False Wall, Dispenser (black)		Appelez-nous	-
3	W10703753		False Wall, Dispenser (grey)   (Replaces: W10427120)		Appelez-nous	-
4	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
5	W10587909		Ring, Trim (grey)				$ 91.07
5	W10587908		Ring, Trim (black)				$ 47.22
5	W10587907		Ring, Trim (white)				$ 29.12
6	W10560985		Cover, Separator				$ 86.86
7	W10616138		Separator Assembly (grey)   (Replaces: W10403776)				$ 214.77
7	W10403775		Separator Assembly (black)		Appelez-nous	-
7	W10403774		Separator Assembly (white)		Appelez-nous	-
8	W10410105		Tray, Drip (grey)				$ 104.16
8	W10322872		Tray, Drip (white)		Appelez-nous	-
8	WPW10322873		Tray, Drip (black)   (Replaces: W10322873)				$ 58.53
9	W11290115		Led Assembly   (Replaces: W10470750)				$ 84.45
10	W10572633		Shield, Separator		Appelez-nous	-
11	WPW10272364		Screw   (Replaces: W10272364)			Immediately	$ 11.36

    View Diagram in Separate Window       Print Part List
