| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

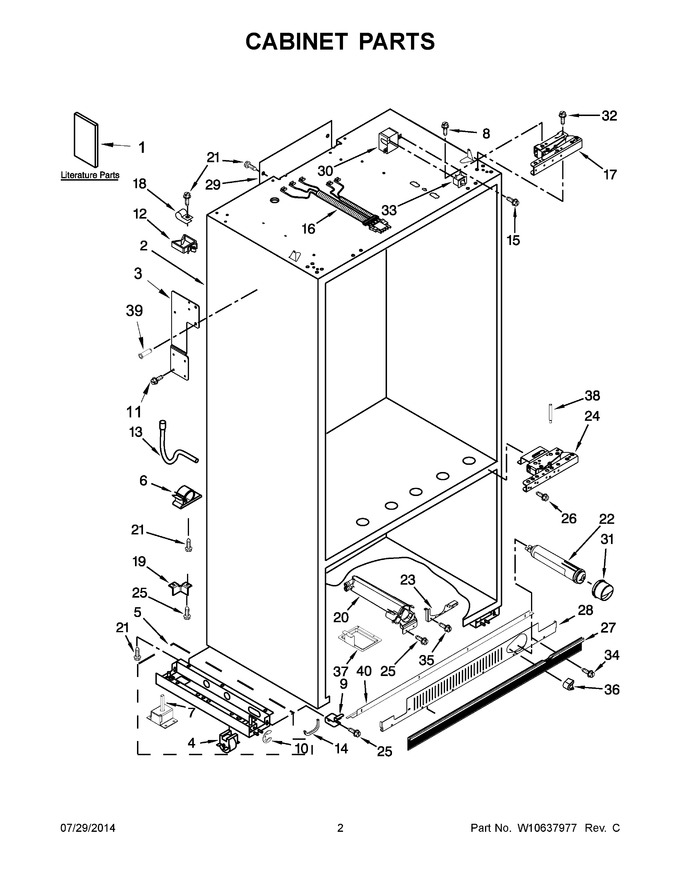

| 1 | W10303991 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | W10188500 | Bracket, Grille (right Hand) |
|
$ 115.89 | |||||
| 4 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 45.34 | |||||
| 5 | W10860448 | Assembly, Support Base (right Hand) (Replaces: W10138423) |
|
Immediately | $ 383.00 | ||||
| 6 | W10663352 | Clip |
|
$ 21.91 | |||||
| 7 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 200.07 | ||||
| 8 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 14.78 | ||||
| 9 | W10839844 | Bracket, Grill Mounting (Replaces: 2307640) |
|
$ 43.26 | |||||
| 10 | 2006841 | Ring, Retainer |
|
$ 92.66 | |||||
| 11 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 12 | W10129069 | Clip, Wire |
|
- | |||||
| 13 | 2314064 | Tube, Drain |
|
$ 93.88 | |||||
| 14 | 2307584 | Grommet, Crossover Tube |
|
$ 23.40 | |||||
| 15 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 16 | W10209506 | Assembly, Light Switch Wire (right Hand) |
|
- | |||||
| 17 | W10167397 | Hinge, Top (right Hand) |
|
$ 557.77 | |||||
| 18 | W10331955 | Clamp, Tube |
|
- | |||||
| 19 | 2006617 | Bracket, Base Support (rear) |
|
- | |||||
| 20 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 270.85 | ||||
| 21 | W10141596 | Screw |
|
$ 9.22 | |||||
| 22 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 23 | W11755873 | Bracket, Filter (Replaces: W10674648) |
|
$ 80.33 | |||||
| 24 | W10136731 | Hinge, Bottom |
|
$ 516.30 | |||||
| 25 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 26 | WPW10142233 | Screw (Replaces: W10142233) |
|
$ 8.93 | |||||
| 27 | WPW10188547 | Skirt, Grille (bottom) (Replaces: W10188547) |
|
Immediately | $ 165.28 | ||||
| 28 | W11739145 | Grille, Bottom (Replaces: W10189196) |
|
Immediately | $ 209.08 | ||||
| 29 | W10426957 | Assembly, Air Duct Cover |
|
- | |||||
| 30 | W10167341 | Cover, Switch (right Hand) |
|
$ 77.09 | |||||
| 31 | WP2260518B | Cap, Water Filter (black) (Replaces: 2260518B) |
|
Immediately | $ 33.95 | ||||
| 32 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 14.78 | ||||
| 33 | W11384469 | Switch, Light (Replaces: W10656773) |
|
Immediately | $ 39.09 | ||||
| 34 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 8.38 | ||||
| 35 | WP8533928 | Screw (stainless) (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 36 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 37 | 2318189 | Tray, Filter Drip |
|
$ 148.73 | |||||
| 38 | W10234202 | Pin, Door Stop |
|
$ 91.73 | |||||
| 39 | WPW10121451 | Insert, Blind Threaded (Replaces: W10121451) |
|
Immediately | $ 8.03 | ||||
| 40 | W10250961 | Trim, Grille (top) |
|
- | |||||
| 16A | W10209520 | Assembly, Light Switch Wire (left Hand) |
|
- | |||||
| 17A | W10167398 | Hinge, Top (left Hand) |
|
$ 407.94 | |||||
| 1A | W10246774 | Energy Guide |
|
- | |||||
| 1B | W10483326 | Service And Wiring Sheet |
|
- | |||||
| 1C | W10234145 | Main Control Service Sheet |
|
- | |||||
| 1D | 2317840 | Modular Icemaker Service Sheet |
|
- | |||||
| 1E | W10379137 | Installation Instructions |
|
- | |||||
| 30A | W10167387 | Cover, Switch (left Hand) |
|
$ 77.58 | |||||
| 3A | W10188499 | Bracket, Grille (left Hand) |
|
$ 66.70 | |||||
| 5A | W10860229 | Assembly, Support Base (left Hand) (Replaces: W10279275) |
|
$ 381.83 |
