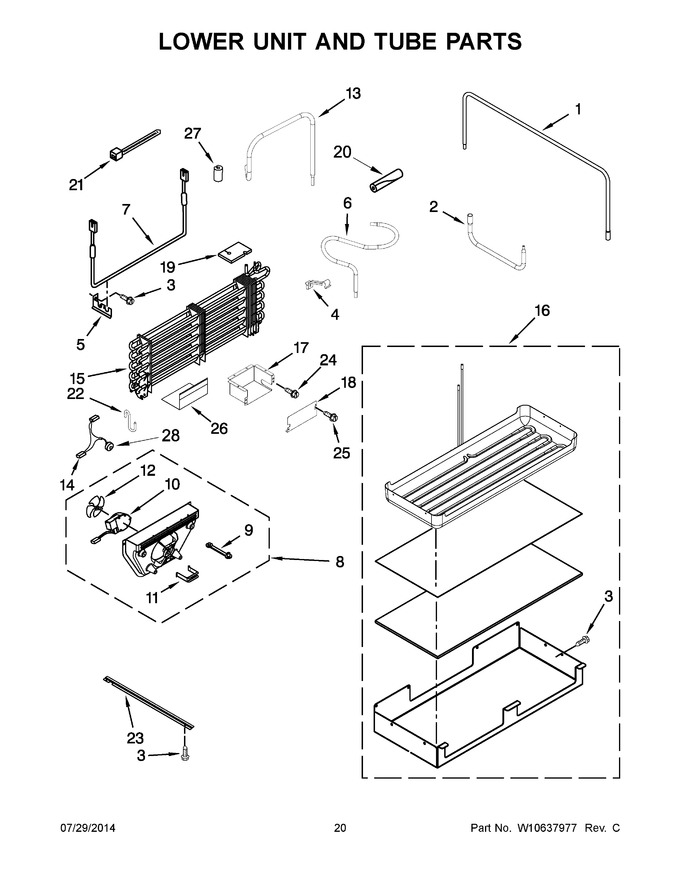

11 - Lower Unit And Tube Parts


12 - Ice Maker Parts


13 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10546784		Tube, Transition (condenser/drain Pan)		Appelez-nous	-
2	W10388653		Tube, Transition (drier/restrictor)			Immediately	$ 40.48
3	W10141596		Screw				$ 9.22
4	2307944		Clip, Evaporator Heater		Appelez-nous	-
5	2307945		Bracket, Mounting		Appelez-nous	-
6	W10306442		Tube, Oil Trap Suction		Appelez-nous	-
7	WP2268393		Heater, Defrost   (Replaces: 2268393)				$ 168.19
8	W10321092		Assembly, Scroll				$ 239.26
9	W11671528		Grommet, Motor   (Replaces: W10321090)		Appelez-nous	-
10	W11671461		Motor, Fan   (Replaces: W10436861)			Immediately	$ 206.52
11	W11671527		Retainer, Fan Motor   (Replaces: W10260421)				$ 24.00
12	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
13	W10404239		Tube, Discharge		Appelez-nous	-
14	W10482185		Assembly, Bi-metal Wire				$ 253.84
15	WPW10195923		Assembly, Evaporator   (Replaces: W10195923)			Immediately	$ 390.15
16	W11623101		Assembly, Drain Pan   (Replaces: W10281063)			Immediately	$ 394.02
17	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 81.52
18	W11756952		Cover, Wire Box   (Replaces: W10321048)		Appelez-nous	-
19	2306180		Block, Evaporator Water Filter		Appelez-nous	-
20	W10405530		Sleeve		Appelez-nous	-
21	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 8.30
22	2317920		Clip, Defrost Heater		Appelez-nous	-
23	2320554		Support, Drain Pan		Appelez-nous	-
24	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
25	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
26	W10321050		Shelf, Wiring Cover		Appelez-nous	-
27	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
28	WP2321803		Bi-metal, Defrost   (Replaces: 2321803)				$ 136.87
