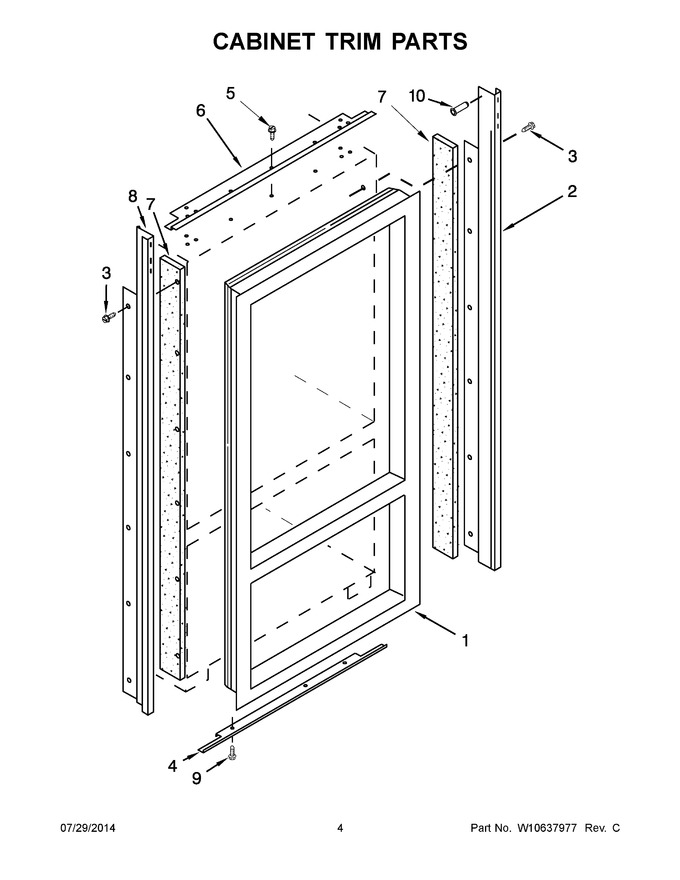

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Breaker, Trim (not Serviced)		Appelez-nous	-
2	W10344544		Trim, Cabinet Side Right Hand (black)				$ 118.24
3	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
4	WPW10188504		Trim, Cabinet (bottom)   (Replaces: W10188504)				$ 84.65
5	W10141596		Screw				$ 9.22
6	W10202875		Trim, Cabinet (top) (right Hand)		Appelez-nous	-
7	2005925		Seal, Side Trim				$ 83.72
8	W10344559		Trim, Cabinet Side Right Hand (black)		Appelez-nous	-
9	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
10	WPW10121451		Insert, Blind Threaded   (Replaces: W10121451)			Immediately	$ 8.03
2A	W10344547		Trim, Cabinet Side Left Hand (black)				$ 122.36
6A	W10202877		Trim, Cabinet (top) (left Hand)		Appelez-nous	-
8A	W10344549		Trim, Cabinet Side Left Hand (black)				$ 103.27
