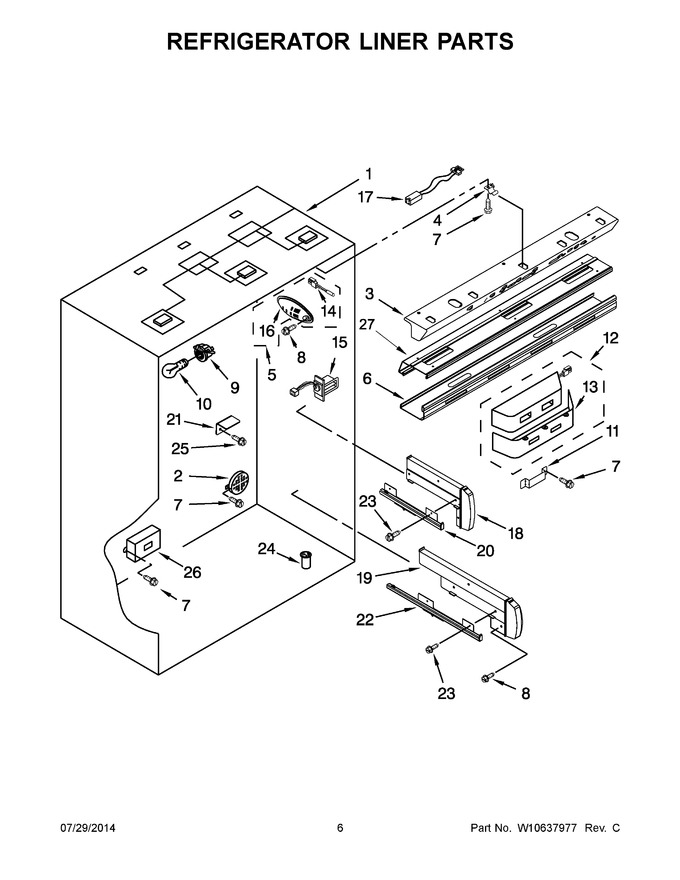

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner, Refrigerator (not Servicable)		Appelez-nous	-
2	2317004		Cover, Air Return		Appelez-nous	-
3	W10269709		Assembly, Control Box				$ 463.11
4	2317000		Clip, Control Box		Appelez-nous	-
5	WP2317844		Assembly, Thermistor   (Replaces: 2317844)				$ 11.38
6	2309270		Shield, Light		Appelez-nous	-
7	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 8.28
8	WP488163		Screw   (Replaces: 488163)				$ 7.92
9	WPW10191429		Socket, Light   (Replaces: W10191429)				$ 8.80
10	WPA3073101		Bulb, Light   (Replaces: 2326255)			Immediately	$ 12.72
11	2317917		Clip, Diffuser Cover		Appelez-nous	-
12	2320523		Assembly, Diffuser				$ 100.60
13	2320519		Cover, Diffuser				$ 117.62
14	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
15	WP2221296		Assembly, Air Baffle   (Replaces: 2221296)			Immediately	$ 412.58
16	WP2317844		Cover, Thermistor   (Replaces: 2317105)				$ 11.38
17	W10209498		Wire, Jumper		Appelez-nous	-
18	2309411		Spacer, Crisper (left Hand)		Appelez-nous	-
19	2268411		Spacer, Deli (left Hand)		Appelez-nous	-
20	2302952		Slide, Crisper Pan (left Hand)			Immediately	$ 318.09
21	2302788		Support, Crisper Cover		Appelez-nous	-
22	2302956		Slide, Deli Pan (left Hand)				$ 298.73
23	WPW10001160		Screw   (Replaces: W10001160)				$ 10.33
24	WP2210509		Body, Valve Tube   (Replaces: 2171931)				$ 99.15
25	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 8.26
26	2268249		Diffuser, Crisper (complete)				$ 63.83
27	2324970		Bracket, Control Box		Appelez-nous	-
18A	2309410		Spacer, Crisper (right Hand)		Appelez-nous	-
19A	2268412		Spacer, Deli (right Hand)		Appelez-nous	-
20A	2302953		Slide, Crisper Pan (right Hand)			Immediately	$ 318.41
22A	2302957		Slide, Deli Pan (right Hand)				$ 228.33
