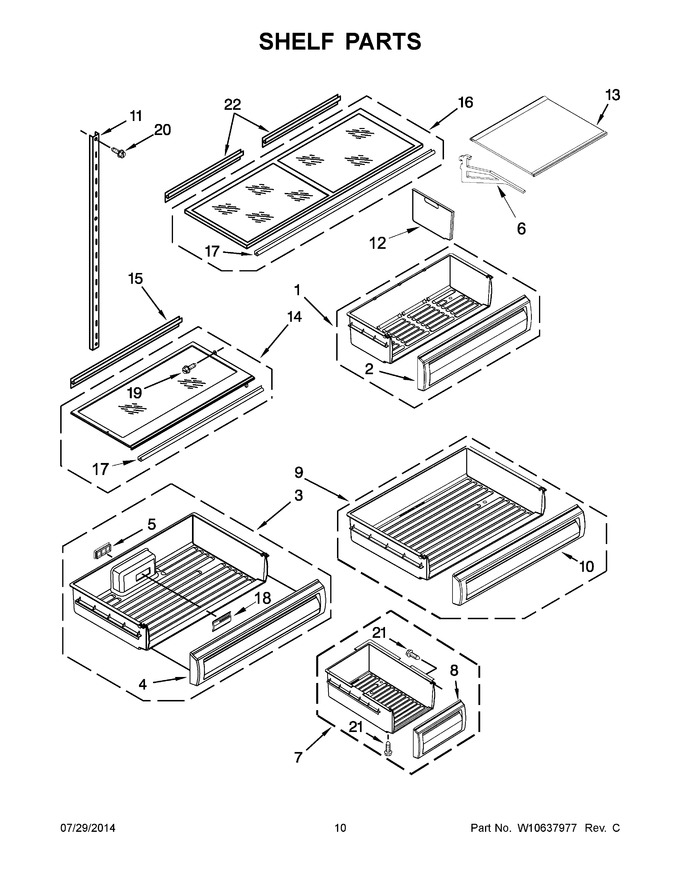

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2256375		Assembly , Crisper Pan   (Replaces: W10407629)				$ 397.25
2	2256374		Front, Crisper Pan		Appelez-nous	-
3	W10407636		Assembly, Deli Pan		Appelez-nous	-
4	2257548		Front, Deli Pan				$ 165.49
5	2307810		Duct, Deli Pan		Appelez-nous	-
6	W10187549		Sidearm, Shelf				$ 299.12
7	2306174		Assembly, Ice Pan				$ 147.41
8	2306175		Front, Ice Pan				$ 95.96
9	2327512		Assembly, Freezer Pan		Appelez-nous	-
10	2268383		Front, Freezer Pan		Appelez-nous	-
11	W10213472		Ladder, Shelf (side)		Appelez-nous	-
12	2256474		Divider, Crisper				$ 87.99
13	WPW10198700		Shelf   (Replaces: W10198700)				$ 312.70
14	W10203635		Cover, Deli Bin				$ 840.79
15	2309399		Gasket, Rear (deli Cover)		Appelez-nous	-
16	W10183749		Cover, Crisper		Appelez-nous	-
17	2309397		Gasket, Cover (front)		Appelez-nous	-
18	2317939		Deflector, Air		Appelez-nous	-
19	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
20	2006475		Screw (white)		Appelez-nous	-
21	WP488787		Screw   (Replaces: 488886)				$ 11.26
22	2309398		Cover, Gasket (rear)		Appelez-nous	-
11A	W10246602		Ladder, Shelf (center)		Appelez-nous	-
