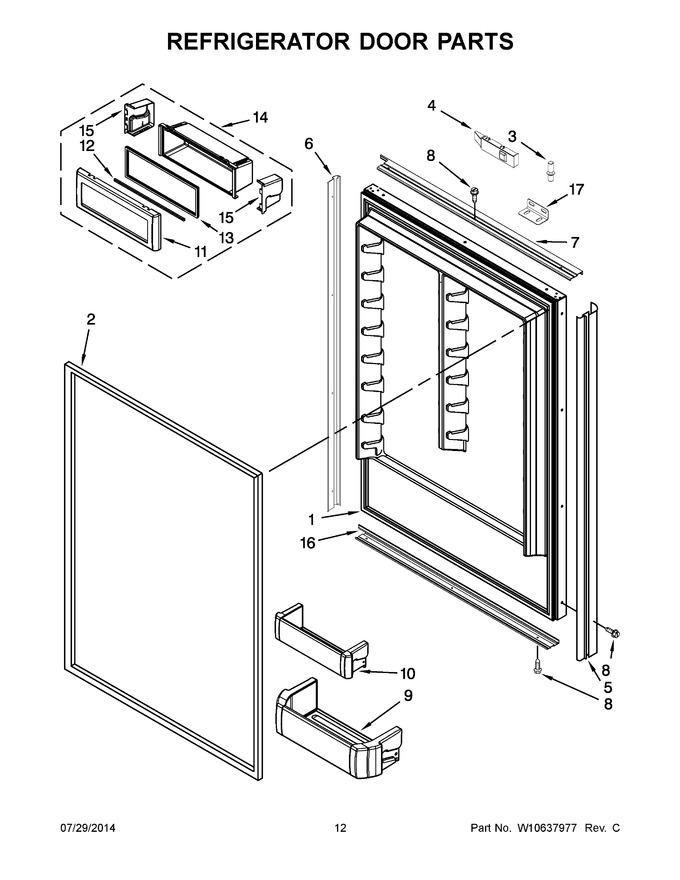

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10138410		Door, Refrigerator (includes Item 2) (right Hand)		Appelez-nous	-
2	2302709		Gasket, Door (white)   (Replaces: W10694215)				$ 328.30
3	W10234194		Pin, Top Door				$ 17.66
4	W10197748		Insert, Door (top)				$ 18.83
5	W10202604		Trim, Handle Door (right Hand)				$ 128.26
6	W10202602		Trim, Hinge Side Door				$ 251.30
7	W10167365		Trim, Top Door (right Hand)		Appelez-nous	-
8	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
9	W10323749		Bin, Gallon				$ 136.84
10	W11590561		Bin, Shallow   (Replaces: W10323603)				$ 94.23
11	2309255		Lid, Utility				$ 43.26
12	2309256		Rail, Utility		Appelez-nous	-
13	2309257		Gasket, Utility Bin		Appelez-nous	-
14	W10323044		Assembly, Utility Bin				$ 132.58
15	WPW10323172		End Cap, Utility Bin (right Hand)   (Replaces: W10323172)				$ 8.60
16	W10167371		Trim, Bottom Door (right Hand)				$ 168.40
17	W10199955		Bracket, Panel Mounting				$ 93.88
15A	WPW10323173		End Cap, Utility Bin (left Hand)   (Replaces: W10323173)				$ 8.60
16A	W10202901		Trim, Bottom Door (left Hand)		Appelez-nous	-
1A	W10202908		Door, Refrigerator (includes Item 2) (left Hand)		Appelez-nous	-
4A	W10197766		Insert, Door (bottom)				$ 17.26
5A	W10188556		Trim, Handle Door (left Hand)		Appelez-nous	-
7A	W10217464		Trim, Top Door (left Hand)		Appelez-nous	-
