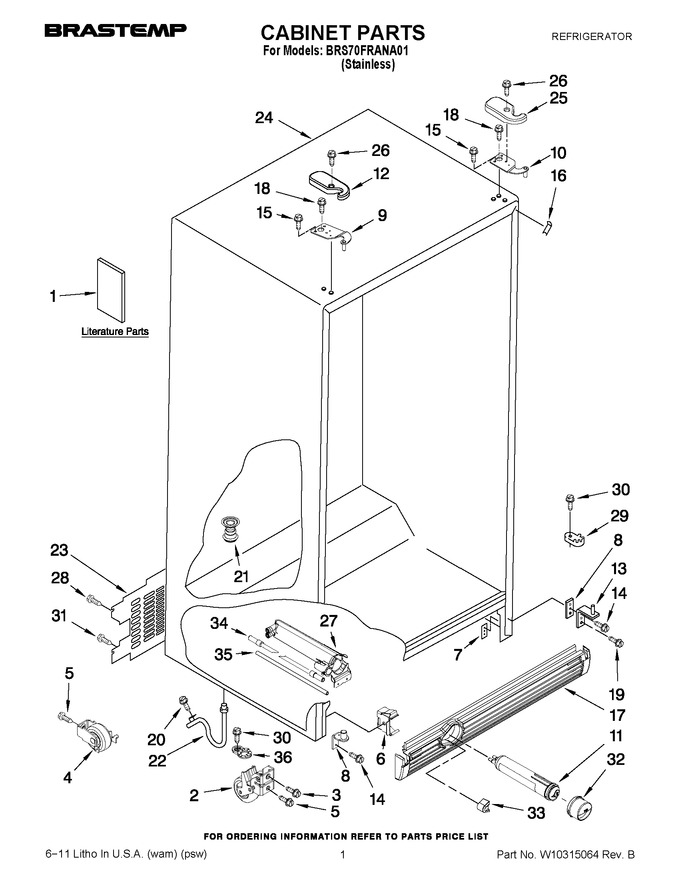

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177632 | Service & Wiring Sheet |
|
- | |||||
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 11.88 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: W10250570) |
|
$ 40.17 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | WP2304249 | Screw Plate (2) (Replaces: 2304249) |
|
$ 14.23 | |||||
| 8 | W10289530 | Hinge Bottom Fc |
|
- | |||||
| 9 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 95.52 | |||||
| 10 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 98.22 | |||||
| 11 | EDR3RXD1B | Water Filter (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 12 | W10138584 | Hinge Cover |
|
$ 15.17 | |||||
| 13 | W10289528 | Hinge Bottom Rc |
|
- | |||||
| 14 | WP489497 | Screw (4) (Replaces: W10029670) |
|
Immediately | $ 29.09 | ||||
| 15 | 3400858 | Screw |
|
- | |||||
| 16 | W10851579 | Filler, Wrapper (Replaces: W10283961) |
|
Immediately | $ 7.19 | ||||
| 17 | WPW10184890 | Grille (Replaces: W10184890) |
|
$ 158.70 | |||||
| 18 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 19 | W10856122 | Screw (2) (Replaces: 3400103) |
|
$ 7.76 | |||||
| 20 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 21 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 50.90 | ||||
| 22 | W11512417 | Extension Tube (Replaces: W10153550) |
|
$ 34.79 | |||||
| 23 | 2220758 | Cover, Unit |
|
- | |||||
| 24 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 25 | W10138579 | Hinge Cover |
|
$ 35.68 | |||||
| 26 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.44 | |||||
| 27 | WPW10121138 | Housing, Water Filter (Replaces: W10121138) |
|
Immediately | $ 112.91 | ||||
| 28 | WP488488 | Screw (Replaces: 489290) |
|
$ 7.68 | |||||
| 29 | WPW10329686 | Door Closer, Lower Cam Rc (Replaces: 2155311) |
|
Immediately | $ 5.43 | ||||
| 30 | WP489483 | Screw (Replaces: W10029680) |
|
$ 10.87 | |||||
| 31 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 32 | WP2260518MG | Cap, Water Filter (Replaces: 2260502MG) |
|
$ 56.03 | |||||
| 33 | 2260503MG | Button, Water Filter |
|
$ 27.01 | |||||
| 34 | W10274362 | Tube, Filter Inlet |
|
- | |||||
| 35 | WPW10350006 | Tube, Filter Outlet (Replaces: 2255012) |
|
$ 115.54 | |||||
| 36 | W11778262 | Door Closer, Lower Cam Fc (Replaces: 2223751) |
|
$ 11.08 |
