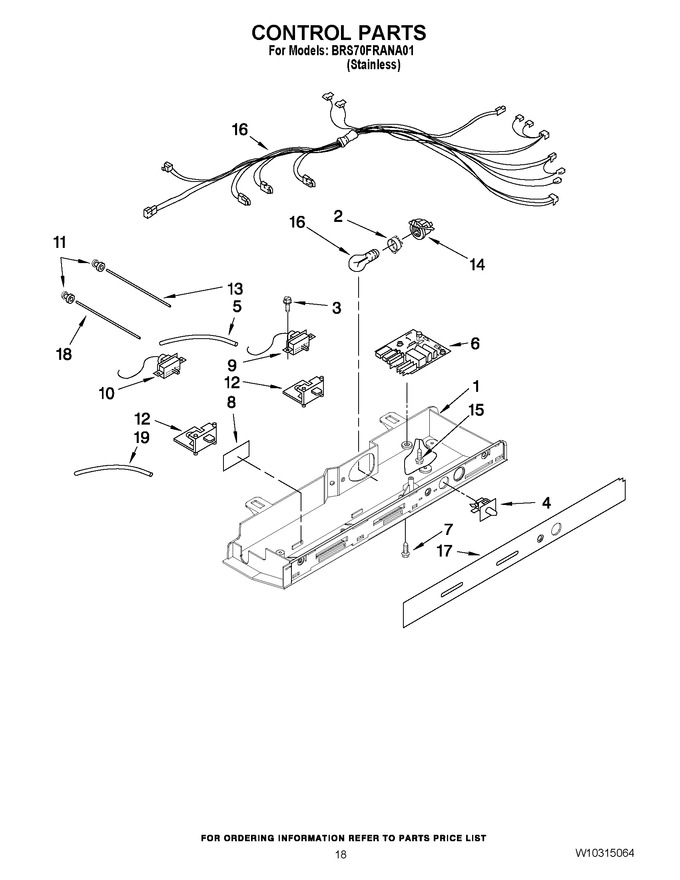

11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box   (Replaces: 2200134)		Appelez-nous	-
2	WP2175210		Shroud, Light   (Replaces: 2175210)				$ 86.74
3	2006254		Screw   (Replaces: 489214)				$ 13.79
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	WP2196003		Tube Barrier   (Replaces: 2196003)				$ 8.35
6	4388932		Electronic Control   (Replaces: 2303824)			Immediately	$ 280.44
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	2172940		Window		Appelez-nous	-
9	WP2321305		Thermostat   (Replaces: 2321305)				$ 253.83
10	WP2321289		Thermostat   (Replaces: 2321289)				$ 241.70
11	2172906		Grommet		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 22.28
13	2179920		Light Bar (rc)				$ 37.08
14	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
15	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
16	2310117		Control Box Harness		Appelez-nous	-
17	W10239827		Cover Control Front		Appelez-nous	-
18	2179921		Light Bar (fc)		Appelez-nous	-
19	WP2196003		Tube Barrier, Thermostat   (Replaces: 2182150)				$ 8.35
