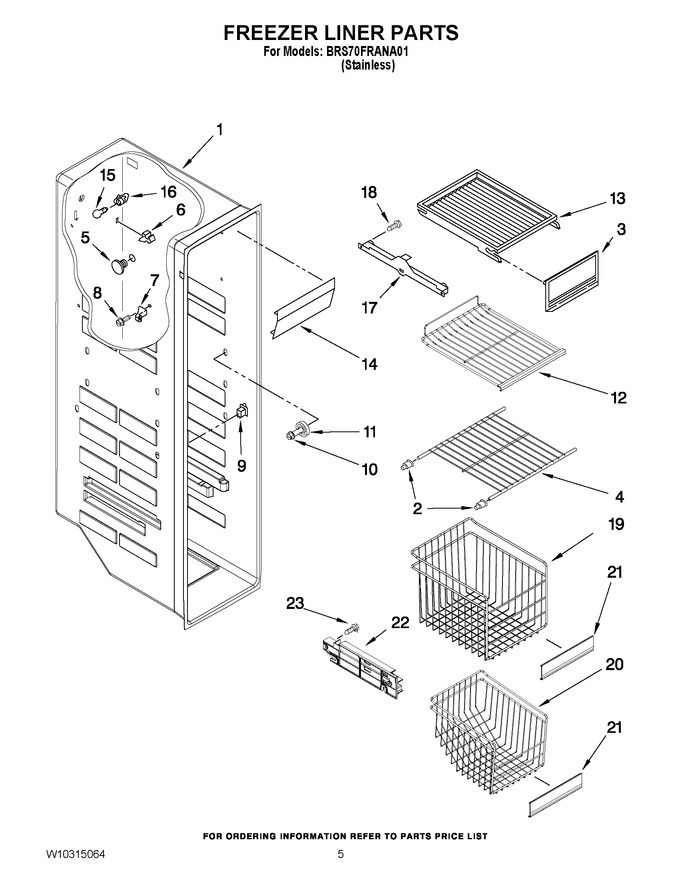

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10130299		Cup, Shelf Mounting (12)   (Replaces: W10130299)			Immediately	$ 14.70
3	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 91.63
4	2327109		Shelf, Wire		Appelez-nous	-
5	W10130269		Hole Plug		Appelez-nous	-
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2196206		Support, Stud (4)		Appelez-nous	-
8	W10142289		Screw   (Replaces: 3400893)				$ 9.61
9	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
10	W10191952		Screw (4)				$ 5.65
11	W11527119		Stud Assembly (4)   (Replaces: W10173127)		Appelez-nous	-
12	WPW10317556		Shelf, Slide Out   (Replaces: 2211742)				$ 94.06
13	2171714		Shelf, Top Compartment		Appelez-nous	-
14	W10154839		Light Lens		Appelez-nous	-
15	4396822		Light Bulb   (Replaces: 850166)			Immediately	$ 13.58
16	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
17	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
17	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
18	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
19	W10130296		Wire Basket, Upper		Appelez-nous	-
20	W10130287		Wire Basket, Lower		Appelez-nous	-
21	2305580K		Trim, Wire Basket   (Replaces: 2305580)				$ 60.29
22	2301292		Track, Basket (left Side)				$ 183.69
22	2301291		Track, Basket (right Side)				$ 154.30
23	W10759522		Screw   (Replaces: W10004810)				$ 8.24

    View Diagram in Separate Window       Print Part List
