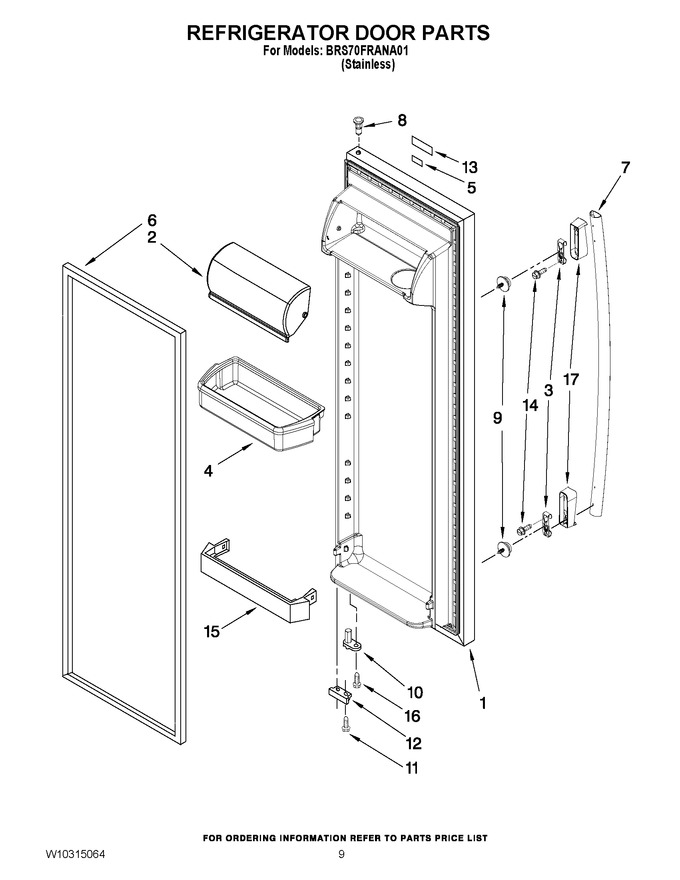

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10310140		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
4	WPW10321304		Door Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
5	2321228		Nameplate, Side-by-side		Appelez-nous	-
6	WPW10136734		Door Gasket, Magnetic   (Replaces: 2327163)				$ 335.39
7	WPW10257118K		Handle   (Replaces: W10257118)				$ 196.99
8	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
9	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: W10029750)				$ 11.41
12	2321218AP		Bracket, Door Stop		Appelez-nous	-
13	2321226		Nameplate		Appelez-nous	-
14	W10267047		Screw   (Replaces: W10201588)				$ 13.47
15	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
16	W10029760		Screw		Appelez-nous	-
17	W10127772		Endcap, Handle				$ 49.75
