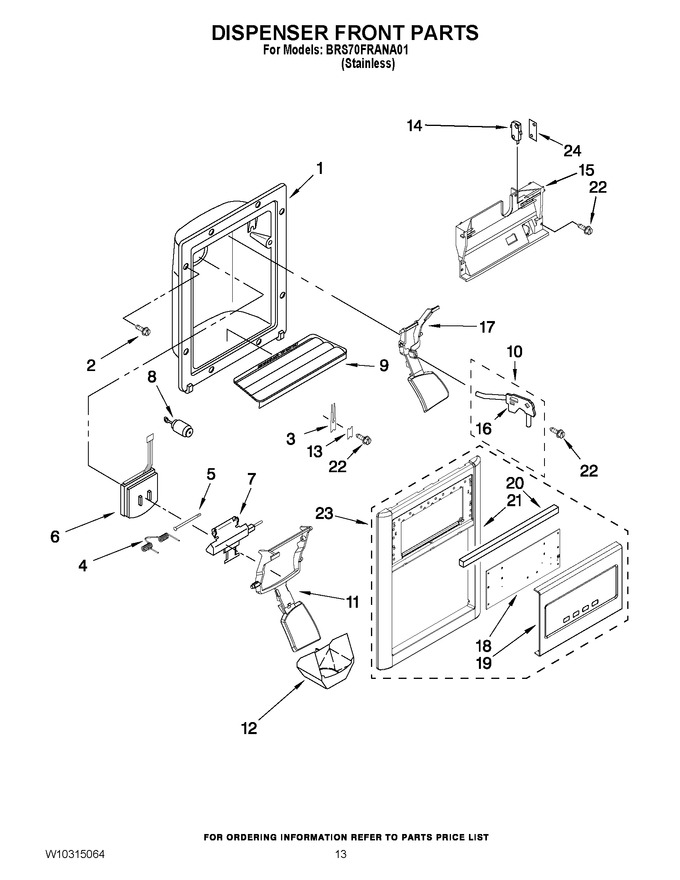

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11245710 | Screw (Replaces: W10029710) |
|
Immediately | $ 14.05 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.77 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2304772) |
|
$ 83.24 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 14.58 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 24.69 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | WP2206670B | Grille, Overflow (Replaces: W10189532) |
|
Immediately | $ 35.52 | ||||
| 10 | 2318280 | Water Fitting Assembly (includes Water Tube) |
|
- | |||||
| 11 | WPW10152854 | Lever, Ice Dispenser (Replaces: W10152854) |
|
$ 103.81 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.63 | ||||
| 13 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.67 | |||||
| 14 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 27.34 | ||||
| 15 | W10728484 | Bracket, Control (Replaces: W10206221) |
|
$ 57.32 | |||||
| 16 | WP2304673 | Bracket, Dispenser (Replaces: 2318279) |
|
$ 15.60 | |||||
| 17 | WPW10152859 | Lever, Water Dispenser (Replaces: W10152859) |
|
Immediately | $ 97.92 | ||||
| 18 | N/P | Switch Assembly (not Available, Order No.23) |
|
- | |||||
| 19 | N/P | Overlay, Front Cover (not Available Order No.23) |
|
- | |||||
| 20 | N/P | Gasket (not Available, Order No.23) |
|
- | |||||
| 21 | N/P | Front Cover, Housing (not Available, Order No.23) |
|
- | |||||
| 22 | W10029740 | Screw |
|
- | |||||
| 23 | WPW10289522 | Front Cover Assembly (includes Items 18, 19, 20 & 21) (black) (Replaces: W10289522) |
|
$ 237.75 | |||||
| 24 | 625834 | Spacer, Switch (2) |
|
$ 7.99 |
