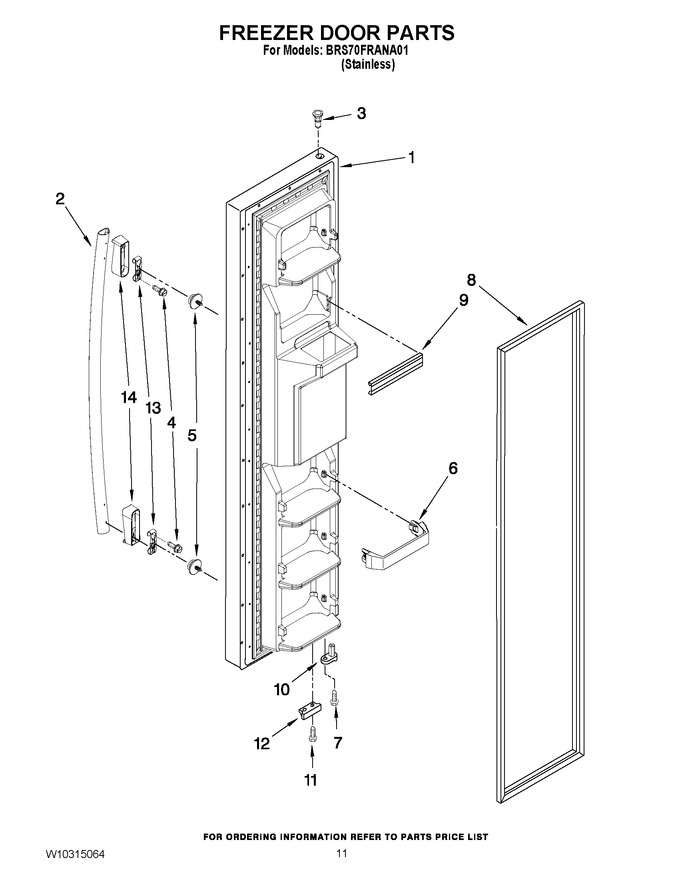

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10310143		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	WPW10257118K		Handle   (Replaces: W10257118)				$ 196.99
3	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
4	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
5	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
6	WP2171157		Trivet (4)   (Replaces: W10154867)				$ 63.70
7	W10029760		Screw		Appelez-nous	-
8	W10136735		Door Gasket, Magnetic   (Replaces: 2327164)				$ 254.84
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 24.27
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: W10029750)				$ 11.41
12	2323534AP		Bracket, Door Stop		Appelez-nous	-
13	W10267047		Screw   (Replaces: W10201588)				$ 13.47
14	W10127772		Endcap, Handle				$ 49.75
